AK-A03S

$265.00

A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.

Product Overview

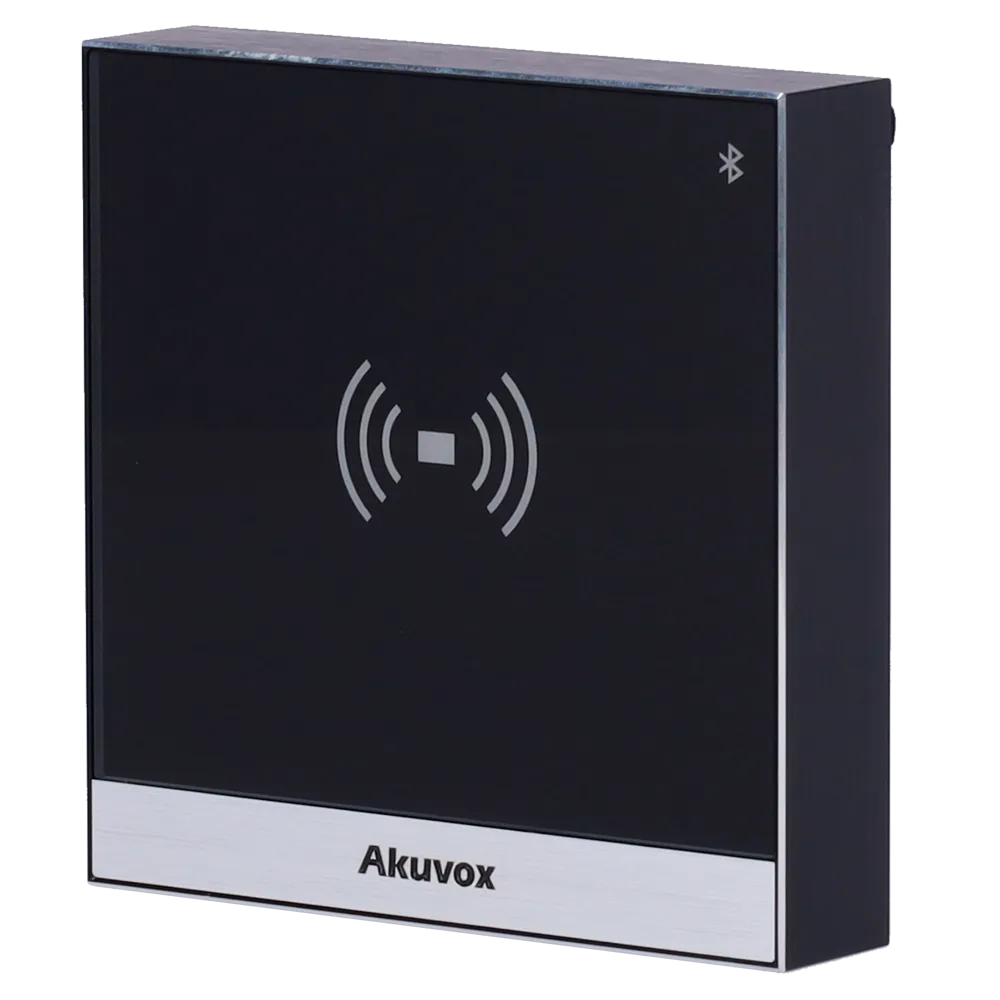

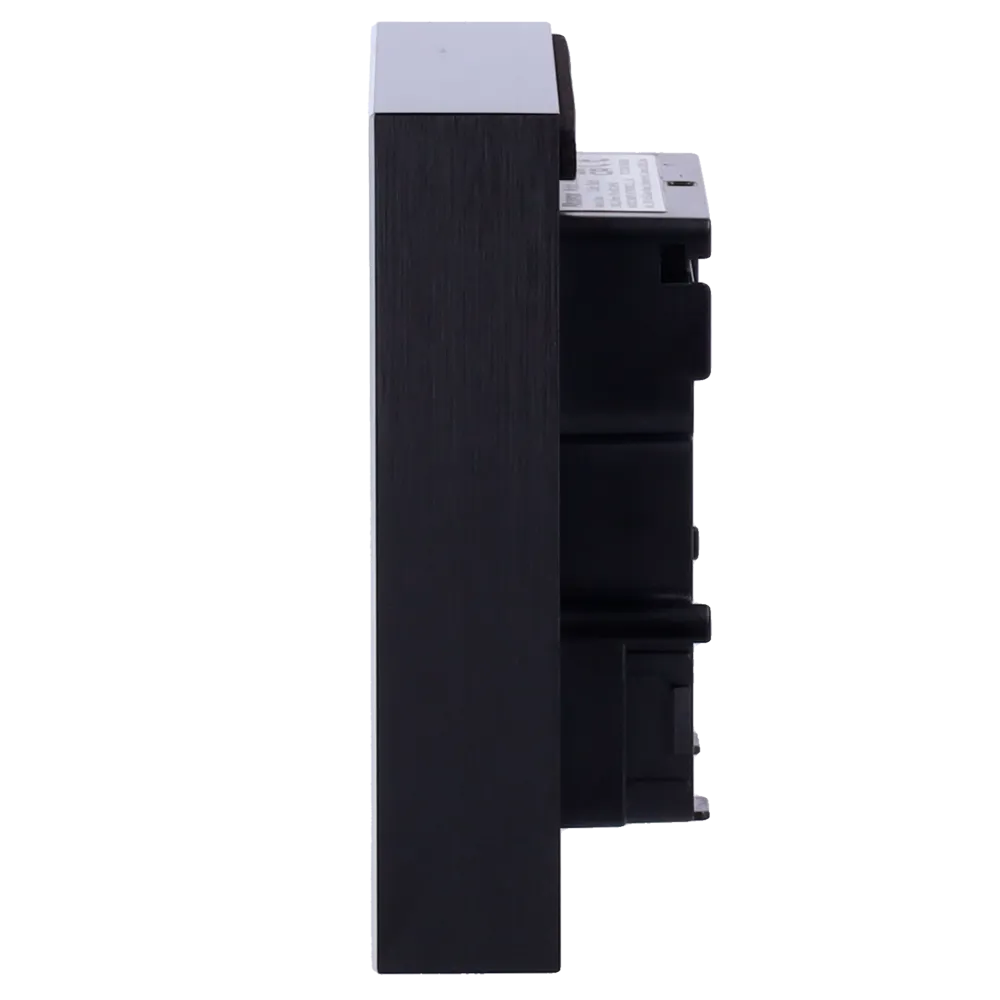

The Akuvox AK-A03S is a square-shaped access control terminal with an output relay (12V / 500mA) for connecting to electric door strikes. This terminal supports a variety of entry methods, including QR code, Bluetooth, 125 kHz & 13.56 MHz cards, PIN code, and NFC.

This is a standalone reader, which means that you can install it directly beside a door, without needing any controller. It’s made from toughened glass, offering extra vandal resistance.

Key Features – Akuvox A03S Access Control Terminal w/ Vandal Resistance

  • Access Control Terminal
  • Front panel: Toughened Glass
  • Frame: Aluminum
  • 156MHz & 125kHz RFID card reader & NFC
  • Up to 20,000 cards and 100,000 card event logs
  • Water-proof & Dust-proof: IP65
  • Bluetooth support
  • Installation: Flush mount or Wall-mount
  • PoE (IEEE803af, Power-over-Ethernet)

Specification

Brand Akuvox
Model A03S
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and Bluetooth BLE, with records
Capacity Up to 20.000 users and 20.000 cards
Records 100.000 registers
Communication TCP/IP and Wiegand
Outputs Wiegand OUT, 1 of relay for main lock (12V/500mA)
Inputs Wiegand IN, 2 of pushbutton, 1 of tamper
Advanced features Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Audio Loudspeaker for opening messages
Network interface Ethernet 10/100 BaseT
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Plastic (casing), aluminium alloy (frame) and tempered glass (front)
Degree of protection IP65 & IK07
Temp. operation -20 ºC ~ +55 ºC
Dimensions 86 (H) x 86 (W) x 33 (D) mm
Power DC 12 V / 1000 mA max. / IEEE802.3af PoE
Weight 206 g
