AK-S532

$558.00

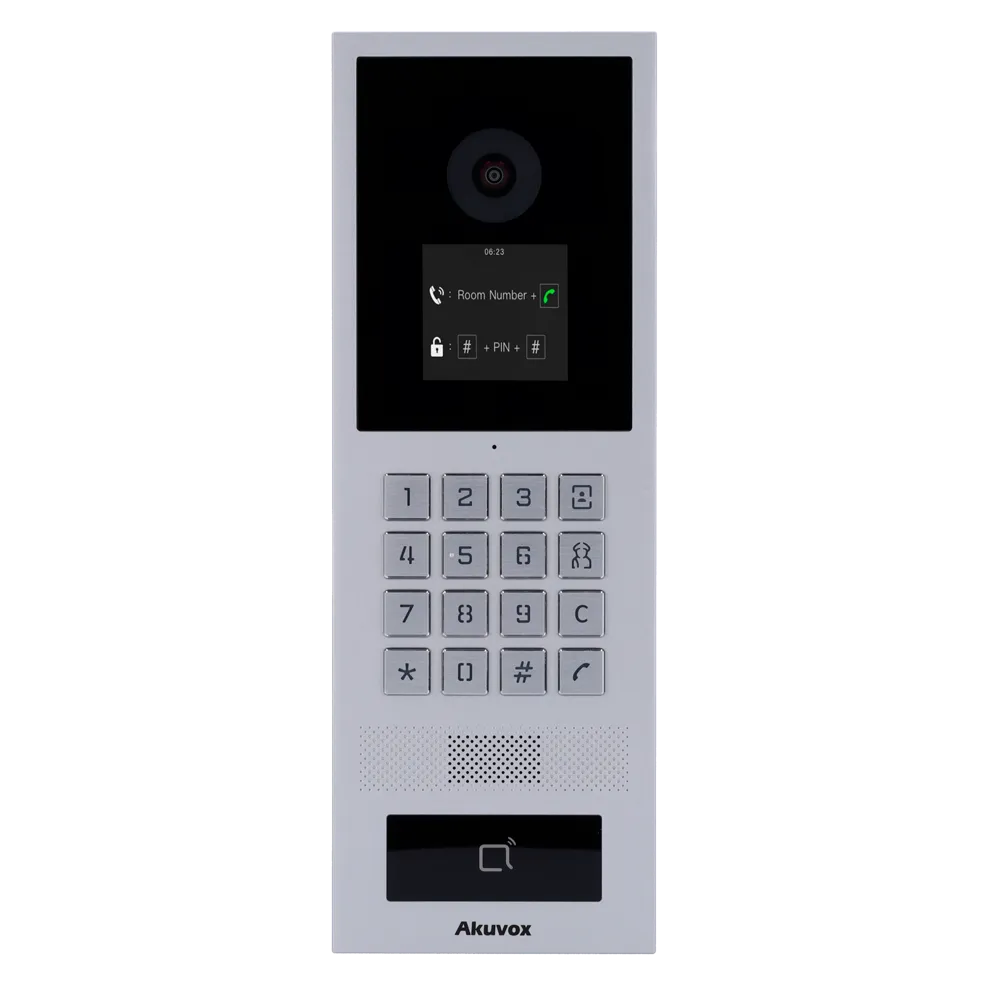

The S532 intercom from Akuvox has a 2.8″ LCD screen and a physical keypad. It’s designed for small to medium-sized projects and supports a variety of credentials such as EM prox, Mifare, PIN, and Bluetooth. It’s made from a tough aluminium housing and has both IP66 and IK08 ratings for weatherproof and vandal resistance.

Product Overview

The Akuvox S532 is a hybrid video intercom that can be used as a regular IP intercom, but also has analog outputs that can be used to connect with 2-wire analog handsets. This makes it a true hybrid intercom, allowing it to co-exist with older analog devices

It features a 2MP camera with powerful IR lights for a quality image at night. It’s IP66 weather resistance and IK08 vandal rating makes it suitable for installation in rough environments. And a minimum operating temperature of -40°C allows it to keep operating even during the coldest weather.

This intercom supports a variety of entry methods, including 125 kHz EM Prox, 13.56 MHz Mifare Desfire (including EV1/EV2/EV3), PIN, and Bluetooth.

It also has a 2.8″ LCD screen to display the contacts list and show calling status. It’s not a touchscreen, so you must use the physical buttons for navigation.

Key Features – Akuvox S532 Hybrid Video Intercom w/Physical Keypad

  • Hybrid Intercom with Keypad and RF card reader
  • Body material: Aluminum Diecasting
  • Display: 8″ LCD
  • Wide-angle camera: 130º（H）& 90º（V）
  • Multiple access control (PIN, IC, ID, NFC, Bluetooth)
  • Output Relay: 2 output relays for door opener
  • Support analog audio handset
  • Powered by PoE+ or external power supply
  • IP66 / IK08
  • Installation: Supports Surface Mount and Flush Mount by using different bracket or box

Specification

Brand Akuvox
Model S532
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE and PIN, with records
Capacity Contacts: 10.000
RFID users: 50.000 cards/passwords
Screen 2.8″ Color TFT
Outputs 2 x lock relay (12V/500mA), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop
Inputs 4 x output pushbutton and 1 x Wiegand IN
Advanced access functions Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Image sensor 1/2.8″ 2 Megapixel CMOS with infrared sensor and light sensor
HDR technology
Viewing angle 130° (H) / 90° (V)
Camera resolution 1920×1080 – 30fps / CIF, VGA, 4CIF, 720p, 1080p
Video encoding H.264
Audio Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Automatic voice detection
Audio format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.722
DTMF (RFC2833), SIP Info
Network interface Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Aluminium alloy
Degree of protection IP66 & IK08
Temp. operation -40 ºC ~ +60 ºC
Dimensions 310 (H) x 106 (W) x 38 (D) mm
Power DC 12 V / 2000 mA max. / PoE+ IEEE802.3at
Weight 1500 g
