GCB01-B7

$155.00

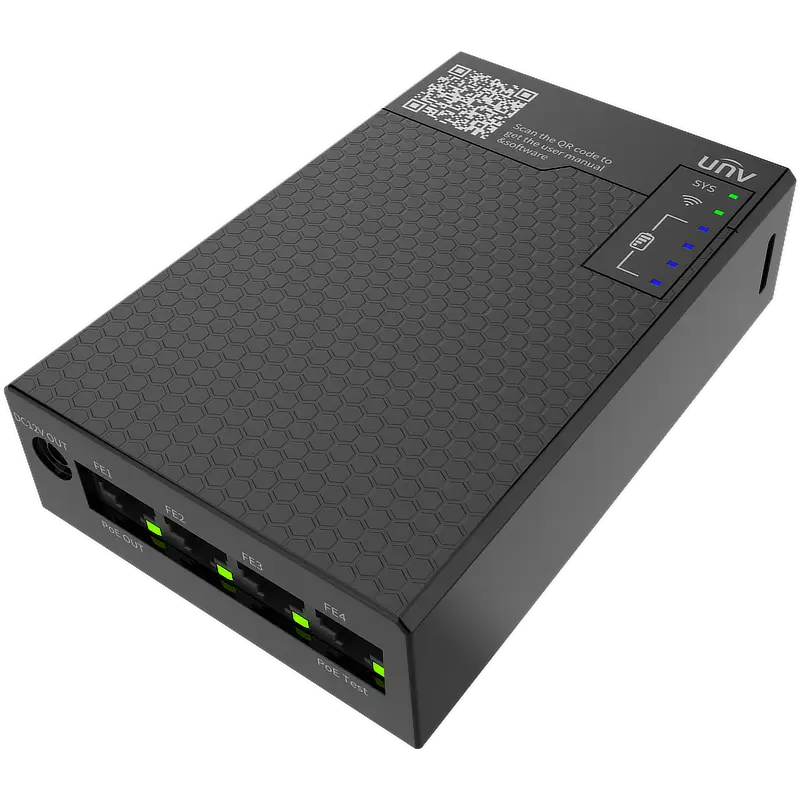

The Uniview connect pro box allows you to power up an IP camera and view it through a laptop or using your smartphone. This is helpful for installing cameras on a jobsite without power – allowing you to aim the cameras and configure them immediately. The 7500mAH can power cameras for ~5 hours before needing to be recharged.

Product Overview

This helpful tool allows you to easily configure or troubleshoot cameras while on the job site. It has a single PoE output and a PoE test port. It also has a built-in Wi-Fi hotspot, allowing you to connect your mobile phone to view the camera through the UNV-Link Pro app or directly through the IP address using your laptop.

It also has a USB charging port (5V/1A) which lets you charge a device such as a smartphone while on the job. So even if you’re not testing cameras, this UNV Pro Connect Box is a handy tool to keep in your kit.

For detailed instructions on how to use it, read pages 23 – 24 of the UNV-Link Pro User Manual.

Specification

GCB01-B7
Interface
Network 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test
Voltage Test 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
1 x DC voltage Test(DC voltage detection Range： 1V~56V)
Network
Wi-Fi 2.4G Wi-Fi (IEEE802.11b/g/n)
Structure / Environment
Battery Capacity 18650 lithium battery, 7500mAH
Power Input 1 x DC 5V/2A max, type-c
Power Output 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A
General
LED Indicator System indicator, WiFi indicator, Battery indicator
Dimensions 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H)
Working Environment -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Reset Button Support
