HC121-TS8CR-Z

$1,057.00

2MP LightHunter Bullet IP Camera, 4 IR LEDs up to 50m, IP67, MicroSD Slot, License Plate Recognition, Varifocal 4.7-47mm lens

Discontinued: Replaced by PKC2640@Z80-IR-P (4MP LPR bullet camera)

Out of stock

Product Overview

Uniview’s HC121@TS8CR-Z is a camera built for one purpose: to capture license plates. It has four powerful IR LEDs, allowing plate detection up to 165ft at night. In addition, its 2MP starlight optical sensor allows for crystal-clear video at 60fps. The sensor’s high dynamic range allows it to practically ignore car headlights, ensuring you capture license plates during day and night.

The camera has a built-in LPR (license plate recognition) algorithm, allowing the camera to read and store plate information in plain text. This information can be used to configure whitelists and blacklists or to search for when a specific plate came into the area.

Uniview LPR works best with the following Uniview NVR models:

These NVRs support plate search, allowing you to perform VCA search by license plate number.

Features – 2MP ANPR Bullet Camera (LPR / License Plate Recognition)

  • 2MP industrial quality sensor, 1920*1080 video image resolution
  • Motorized zoom lens, flexible adjustment of focus range according to the scene, easy installation
  • H.265 Compression
  • Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
  • Recognizes vehicle body colors and characteristics (daytime)
  • Supports blacklist and whitelist configuration
  • IP67, IK10

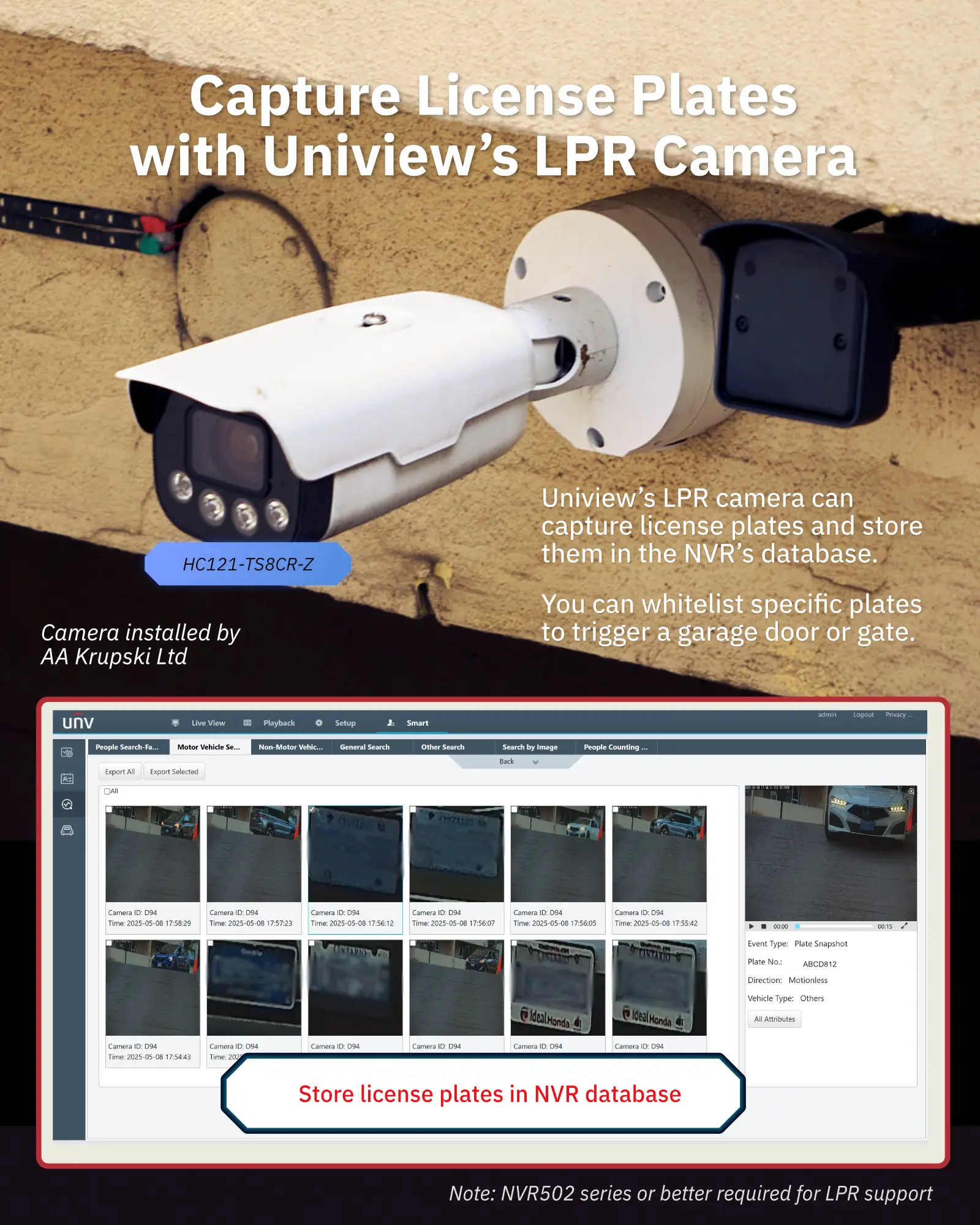

A poster highlighting the features of Uniview's license plate recognition camera

Specification

Camera Description
Sensor 1/2.8” 2MP CMOS
Focal length 4.7 to 47mm, motorized zoom
Shutter Auto/Manual, range: 1/25 to 1/100000 s
Minimum illumination 0.001lux (F1.6)
Image Description
Image collection format 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60
Resolution Main stream: 1080P (default), 720P, D1
Sub stream: 720P (default), D1, 2CIF, CIF
Third stream: D1 (default), 2CIF, CIF
Frame rate 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Video compression H.264 (default), H.265
ROI Supports up to 8 regions
Video OSD Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
Image OSD Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
Smart Description
Application scenario Vehicle speed ≤30km/h
Supports simultaneous application to entry/exit scenes
Vehicle detection mode Video (default) or inductive loop
Capture vehicle head only Support
License plate number recognition Supports recognition of license plates with numbers and letters by default
List configuration Supports allowlist and blocklist configuration, each list allows 20,000 items
Supports import, export, add, and delete operations
Barrier opening policy Open barrier only for the recognized vehicles
Open barrier for all vehicles
Open barrier only for vehicles on the allowlist
Open barrier for vehicles not on the blocklist
Configurable Boolean output ID
Storage Description
Edge storage Supports ANR with a Micro SD card, up to 128GB
Structure Description
Illumination Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
Sunshield Long sunshield
Bracket 3-axis mounting bracket
Junction box The camera comes with a junction box for storing tail cable
Interface Description
Network interface 1 × 10M/100M RJ45
Serial port 1 × RS485
Boolean output 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
Boolean input 2 inputs, supports level/Boolean, with max level up to DC 5V
Audio interface 1 × audio input, 1 × audio output
Storage interface 1 × Micro SD card slot
General Description
Power supply DC12V + 25% – 10%
Max. power consumption: 20W
Supports PoE (802.3at, class 4)
Dimensions (L×W×H) 386mm x 126mm x 130mm
Weight 2kg
Operating environment -40℃ to 60℃, ≤90% RH
Ingress protection IP67, IK10
