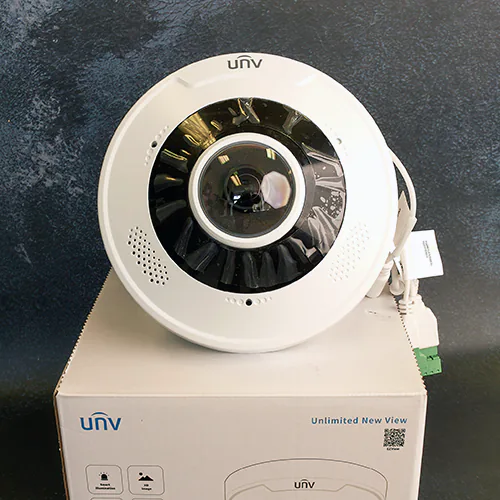

IPC86CEB-AF18KC-I0 |
| Camera |
| Sensor |
1/1.7″, 12.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR |
| Day / Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000s |
| WDR |
DWDR |
| S/N |
>52dB |
| Lens |
| Lens type |
1.8mm@F2.0 |
| Field of View |
360° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 1.8 |
43.8 |
17.5 |
8.8 |
4.4 |
| Illuminator |
| IR Range |
Up to 15m (49ft) IR range |
| wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Compression |
Ultra265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Main Stream |
Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
PTZ View: 1920*1080@20/25fps; |
| Sub Stream |
Fisheye View:2000*1500@20fps;2000*2000@25fps |
| Third Stream |
Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| Live View Display |
| Mount Type |
Support table, wall, and ceiling |
| Hardware Decoding |
Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view、vertical panorama view
Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view、vertical panorama view
Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
| Software Decoding |
Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ |
