LYS-L6

$115.00

This is a Wi-Fi 6 wireless AP, designed for medium-density projects. It has 4 spatial streams, supports up to 512 simultaneous users, and has a coverage area of 145 m².

Product Overview

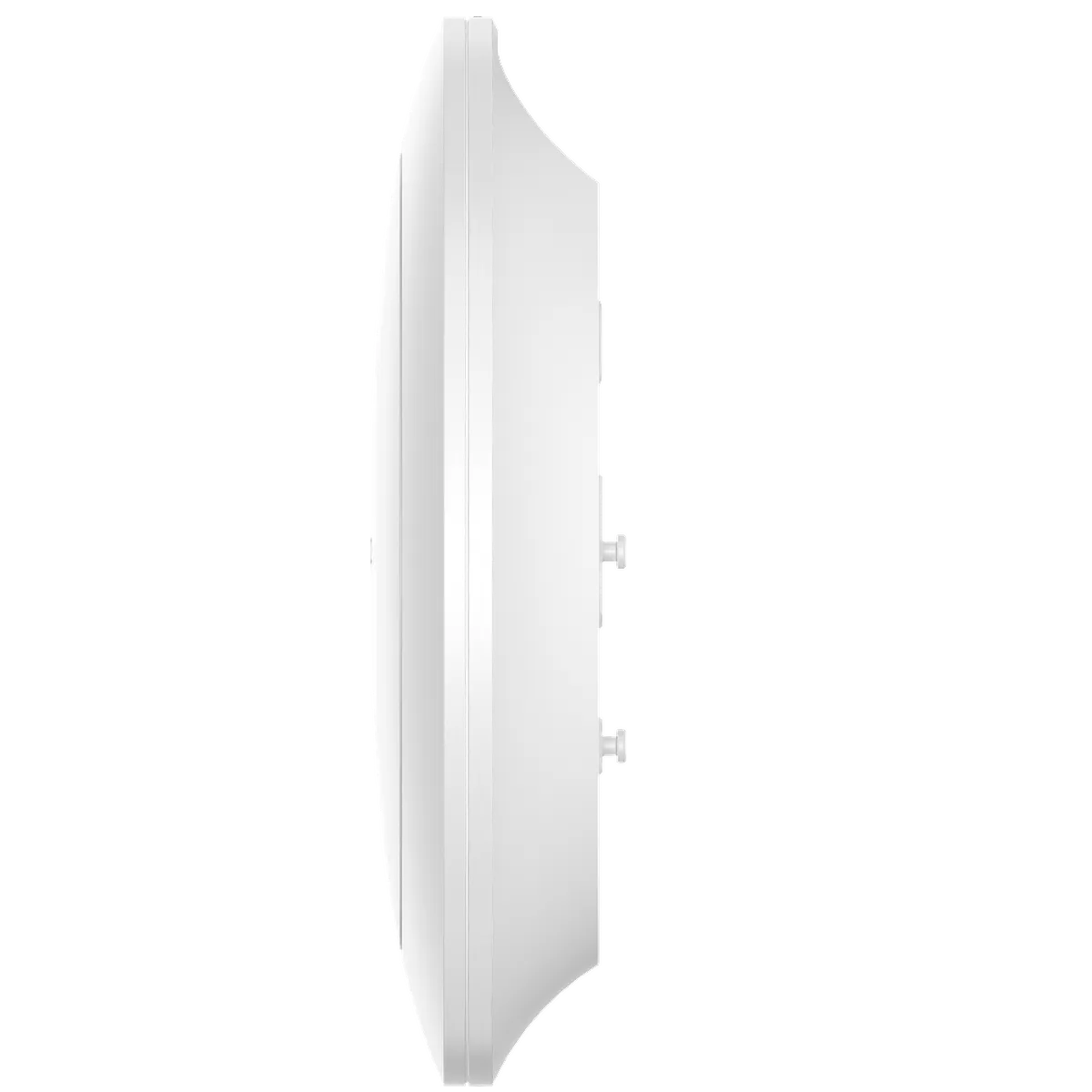

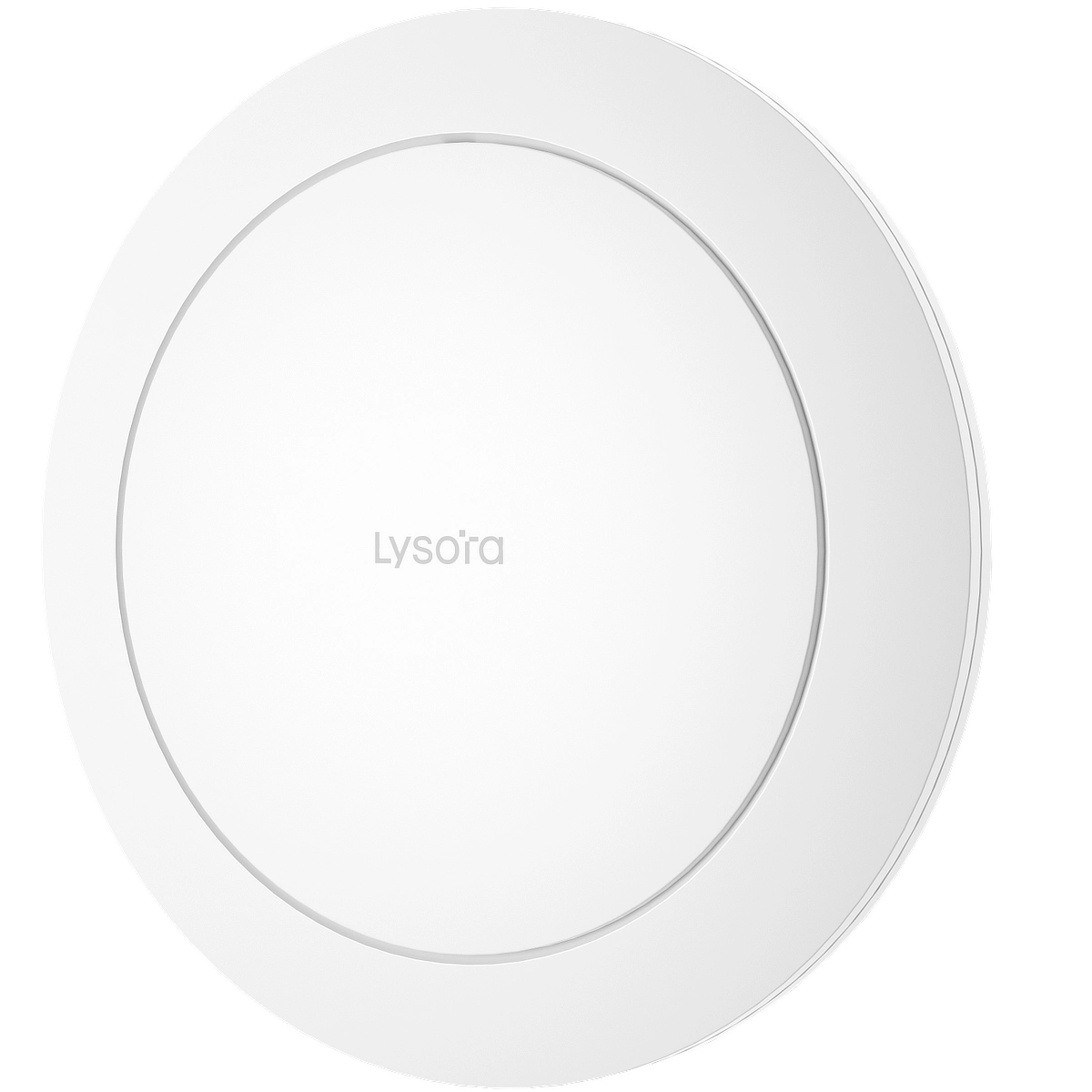

The Lysora L6Lite is a Wi-Fi 6 ceiling-mounted access point, designed for medium-density applications. It supports up to 512 users, with a maximum bandwidth of 2974 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 145m² (1560ft²).

This access point can be powered via standard PoE and consumes up to 18 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features – Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point

  • Wi-Fi 6 AX3000 dual-band ceiling mount access point with built-in antennas
  • 1 x 1GE LAN port
  • Dual-band 2.4 GHz/5 GHz
  • Compliant with 802.11ac and 802.11ax (Wi-Fi 5 & Wi-Fi 6)
  • Wireless data rate of up to 2974 Mbps
  • AP mode and routing mode
  • Layer 3 roaming
  • Unified networking and management based on Lysora Cloud App
  • PoE input and local power supply (PoE injector and DC adapter purchased separately)

Specification

Overview
Dimensions Ø220 mm x 52.6 mm (Ø8.66 in. x 2.07 in.) (excluding the mounting bracket)
Weight ≤0.5 kg (1.10 lbs) (without packaging); ≤0.7 kg (1.54 lbs) (with packaging)
Coverage Area 145㎡ (1560.77 square ft.)
Mounting Type Ceiling Mount, Wall-mounted (Mounts Included)
Hardware & Networking
Networking Interface 1 x 1 GE RJ45 port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6)
Antenna Gain 2.4 GHz: 3.53 dBi, 5 GHz: 5.15 dBi
Max. Transmit Power 2.4 GHz: 28 dBm, 5 GHz: 29.7 dBm
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 573 Mbps, 5 GHz: 2401 Mbps
Max. Client Count 512 (2.4 GHz and 5 GHz enabled)
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO
Spatial Streams 4
Power Specifications
Power Consumption < 18 W
Power Method PoE/PoE+ or DC (12 V, 2A) (Adapter not included)
