NDR-240-48

$85.00

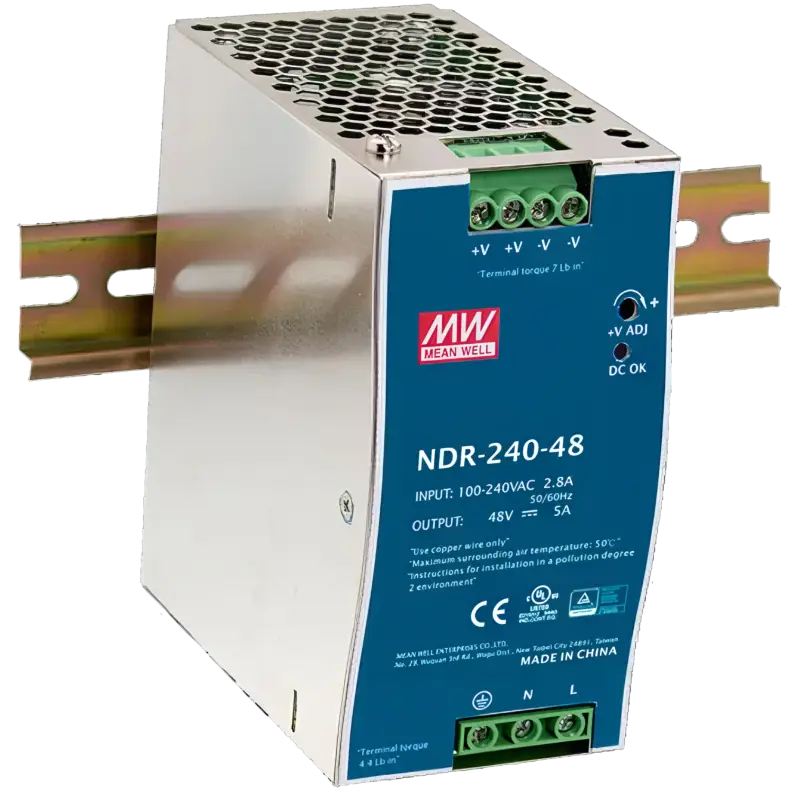

This is a DIN-rail power supply for use with Petenet industrial PoE+ switches. It takes an input of 90-264VAC and outputs 48V DC at 5 A. It can be mounted on a DIN-rail and is UL approved.

Product Overview

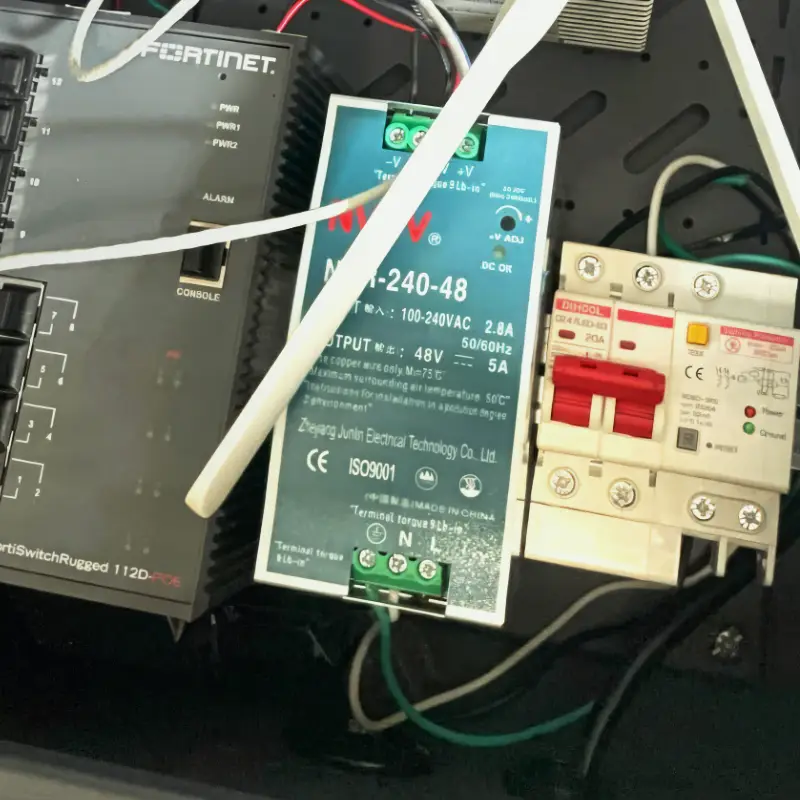

This DIN-rail power supply is designed for use with Petenet industrial PoE switches. It supports a multitude of safety features such as short circuit, voltage, overcurrent, and high temperature protections. It supplies up to 240 watts to industrial equipment, and can be mounted on a DIN rail TS-35/7.5 or 15.

NDR-240 Series Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN500082-2) Industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty

Specification

Wattage 240 240
Input Voltage 90-264VAC 90-264VAC
Output Current 10A 5A
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24-28V 48-55V
Dimensions 63x 125.2x 113.5 63x 125.2x 113.5
Working Temperature -20-+70°C
Safety Standards UL508, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A
