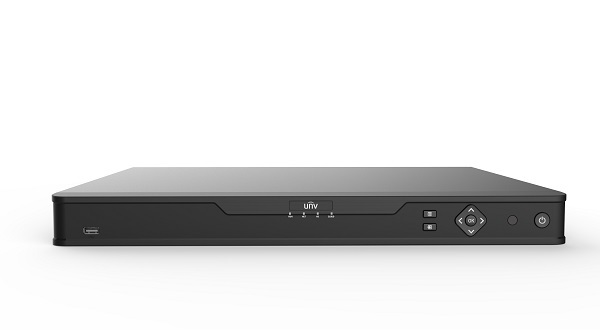

NVR304-32E-B

$687.00

32 CH | No PoE | 4xSATA | H.265/H.264 | P2P | 2xHDMI/VGA w/Independent Layouts | 16/4 Alarm In/Out | Dual NIC | Up to 12MP

Out of stock

Categories: Uniview NVR

Product Overview

Features – 16/32 Channel 4 HDDs 4K NVR

  • Support Ultra 265/H.265/H.264 video formats
  • 16/32-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840×2160) resolution
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 4 SATA HDDs, Up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk)
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support Live view, playback, PTZ Control, Camera setting via local network
  • Support Real-time Smart Function
  • Support Day and Night time Smart Function

Specification

Model NVR304-16E-B NVR304-32E-B
Video/Audio Input
IP Video Input 16-ch 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols IPv4, IPv6, HTTP, SMTP, SNMP, RTSP, P2P, UPnP, NTP, DHCP, PPPoE
General Function IP Address Filtering, ARP Protection, Cyber Security Data Protection
Video/Audio Output
HDMI/VGA Output HDMI1/VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI2:
4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25
Hard Disk
SATA 4 SATA interfaces
Capacity up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk)
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Object removal, Object abandon, Audio
detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS485
USB Interface Front panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 12V DC
Power Consumption: ≤ 12W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 440mm × 344mm× 50mm (17.3″ × 13.5″×2.0″)
Weight (without HDD) ≤ 3.14Kg (6.92lb)
