RG-ES220GS-P

This is a managed 20-port switch, of which sixteen ports support PoE+. It can be managed through the Ruijie Reyee app and supports advanced features such as IP camera recognition, loop prevention, and 250m extended transmission. Additionally, two of the ports are gigabit SFP ports, allowing you the flexibility to connect your network using fiber optic cables.

Product Overview

The RG-ES220GS-P is a 20-port managed switch designed for small business or home networks. You can manage the device using the Ruijie Reyee app on smartphone – allowing you to reboot individual ports and configure advanced settings. This switch has automatic loop detection and prevention, 250m long-range PoE, and VLAN configuration. It also supplies PoE+ (IEEE 802.3at / IEEE 802.3af) on sixteen of the ports, allowing you to easily power security cameras or wireless access points.

It can be wall mounted using the slots on the bottom of the device. The built-in fan only runs when the device is hotter than 25°C, ensuring quiet operation in cool environments.

Highlight Features

  • 20-Port Gigabit Managed Switch with 16 PoE+ Ports, 2 RJ45 Ports, 2 SFP Ports
  • Cost-Effective Smart Cloud Managed Switches
  • IP Camera Recognition, Unique Value for CCTV Network
  • Automatic Loop Prevention Ensures Service Continuity
  • Lifetime management on Ruijie Cloud at anytime anywhere

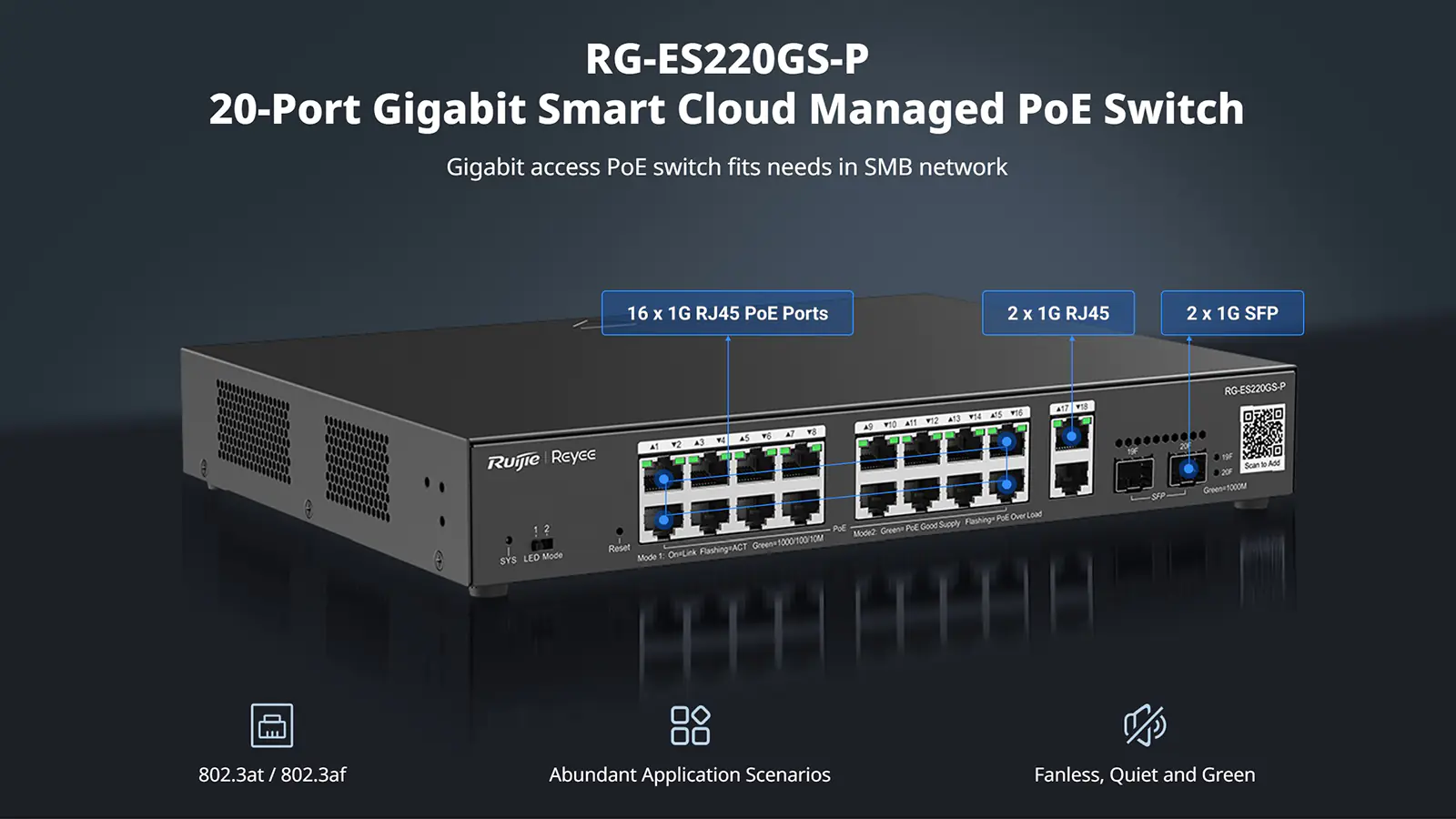

Infographic for a Reyee twenty port cloud managed PoE switch with two SFP uplink ports for fiber optic connection

Specification

RG-ES220GS-P
Ports 18 x 10/100/1000Base-T, 16 x PoE+ ports, 2 x SFP Gigabit ports
Switching Capacity 40 Gbps
MAC Address Table 8000
Fan Built-in, turns off at temperatures below 25°C
Dimensions (W x D x H) 300 mm x 223 mm x 43.6 mm
MTBF ~200,000 hours
PoE 250W power budget (IEEE 802.3at/802.3af)
Fowarding Rate 29.76 Mpps
Max VLANs Up to 16 VLANs
Port Surge Protection 4 kilovolts
Weight (including packaging) 2.8kg (6 lbs)
Warranty 3 Years
