TIC7626EL-GAF75-4X56-VH1

$11,115.00

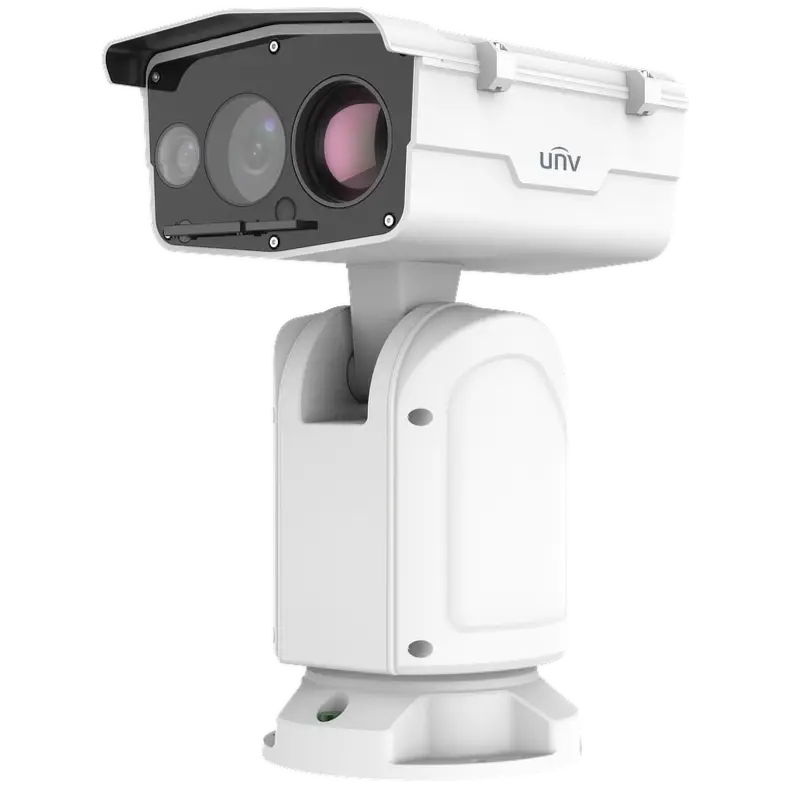

This is an extremely powerful 56× zoom PTZ camera with a thermal and optical lens. The optical lens is a 6 – 336 mm zoom lens, while the thermal lens is fixed at 75mm for long-range detection of objects and fires.

Categories: IP CamerasTags: PTZ, Thermal

Product Overview

The TIC7626EL-GAF75-4X56-VH1 is an top-of-the-line PTZ from Uniview. It features dual-spectrum imaging – using both an optical and a thermal image sensor. It also has gyroscopic image stabilization, helping counter the effects of vibration due to wind and produce a smoother image.

The thermal lens allows for target detection in difficult scenarios, such as during foggy or rainy weather. It can also be used to detect fires, allowing for a quicker emergency response.

This camera also has a built-in wiper that automatically senses rain and cleans the lens – ensuring crystal-clear performance even during harsh weather.

Features – Thermal & Optical Dual-spectrum Positioning System

  • Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
  • Passive infrared thermal imaging, meets the requirement of concealed monitoring and is not affected by bad weather conditions such as fog, smoke, rain, snow, and night
  • Thermal channel supports fire detection, and the optical channel can link to the fire position and zoom in for more accurate fire situation judgment
  • Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion, support smart tracking
  • Optical channel supports 4 MP@60 fps, providing smoother motion images
  • Optical channel supports gyroscope stabilization for stable pictures
  • Optical channel supports heat wave reduction, which can reduce heat wave phenomena and improve image quality
  • Varifocal laser: 800 m (2624.7 ft) distance, proportional to optical zoom of camera module
  • Rain-sensing auto wiper, providing clear images in harsh weather
  • Supports 1/1 audio in/out, 7/2 alarm in/out, 1 serial port RS485
  • Power supply: DC 48 V ± 25%, DC 24 V ± 15%, AC 24 V ± 25%
  • IP66



Specification

TIC7626EL-GAF75-4X56-VH1
Channel Optical Thermal
Camera
Sensor 1/1.8″ CMOS Vanadium oxide uncooled focal plane arrays
Min. Illumination Colour : 0.0003lux(F1.2, AGC ON)
B/W : 0.0001lux(F1.2, AGC ON)
0 Lux with Laser		 N/A
Pixel Size N/A 12 um
NETD ≤ 40 mk@F1.0@25 ℃
Shutter Auto/Manual, 1 to 1/100000 s
WDR 120 dB
S/N >52 dB
Lens
Focal Length 6 ~ 336 mm 75mm
Optical Zoom 56X N/A
Iris F1.2 to F4.6 F1.0
Field of View (H) 57.9°~ 1.6° 6.1°
Field of View (V) 34.6°~ 0.9° 4.8°
Field of View (D) 71.2°~ 1.9° 7.2°
DORI
DORI Distance (Detect) 155.5m(510.1ft)~4829.4m(15844.5ft) N/A
DORI Distance (Observe) 62.2m(204.0ft)~1931.8m(6337.8ft) N/A
DORI Distance (Recognize) 31.1m(102.0ft)~965.9m(3168.9ft) N/A
DORI Distance (Identify) 15.5m(51.0ft)~482.9m(1584.4ft) N/A
Illuminator
Illumination Distance (IR) Up to 800m(2624.7ft) N/A
Video
Video Resolution Main Stream: 4MP (2688×1520): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps;		 1080P(1920*1080), Max.30fps
Video Compression Ultra 265, H.265, H.264, MJPEG
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
ROI Support
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 8 areas per scene N/A
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 N/A
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip vertical, Flip horizontal, 180°
Defog Digital defog, Optical defog N/A
Low Illumination Characteristics ColorHunter with wise-ISP
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Smoke Detection Support N/A
Auto Tracking Support tracking targets automatically, capturing detailed information at a distance
Events
Fire Detection N/A Support
Basic Detection Motion detection, Tampering alarm, Audio detection N/A
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 128 Kbps
Two-way Audio Support
Sampling Rate 16KHZ
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
PTZ
Pan Range 360° (endless)
Pan Speed 0.02°/s ~ 140°/s
Tilt Range -90° ~ 45°
Tilt Speed 0.02° ~ 50°/s
Number of Presets 1024
Preset Image Freeze Support
Home Position Support
Number of Presets (IPC) 1024
3D Location Support
Number of Patrol 16
Interface
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 7/2
Serial Port 1 × RS485
Network 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Video Output N/A 1 BNC (for debugging)
General
Power DC 48V±25%、DC 24V±15%、AC 24V±25%
Power Consumption Max 135W
Power Interface Wires with cold-pressed terminal
Dimensions 366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H)
Weight 17.98kg(39.64lb)
Working Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV
Reset Button Support
RTC Support
Certification
Protection IP66
Live View
OSD Font Vector
OSD Character Number 40
