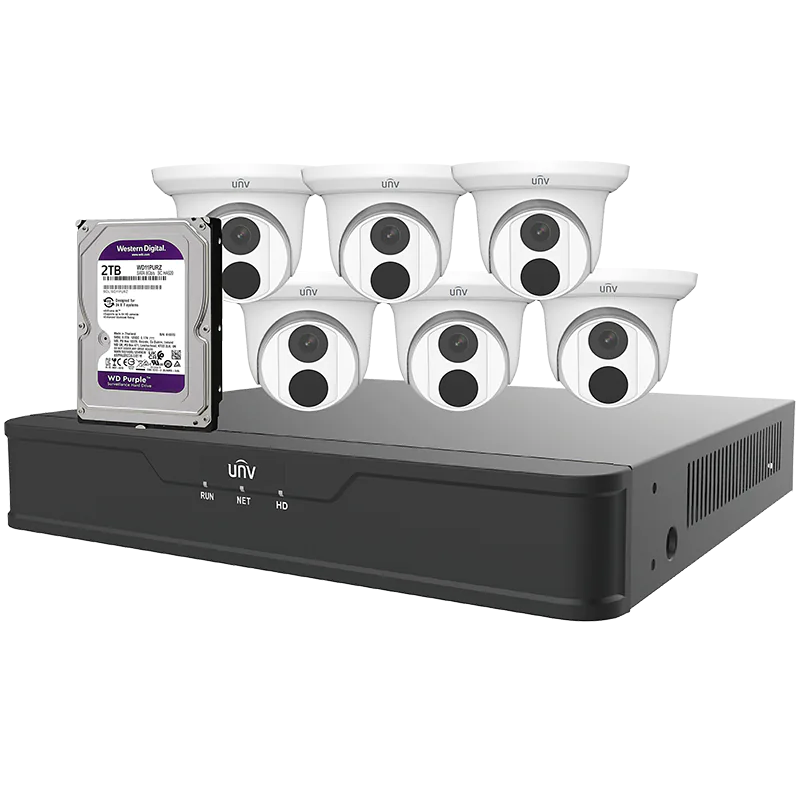

| Model |
NVR301-08S3-P8 |
| Video/Audio Input |
| IP Video Input |
8-ch |
| Network |
| Incoming Bandwidth |
64Mbps |
| Outgoing Bandwidth |
48Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI:
4K(3840×2160)/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Audio Compression |
G.711A, G.711U |
| Synchronous Playback |
8-ch |
| Liveview display |
1/4/6/8/9 |
| Corridor Mode Screen |
3/4/5/7/9 |
| Snapshot |
| FTP/Schedule/Event Snapshot |
1-ch snapshot, up to D1 resolution |
| Decoding |
| Decoding format |
Ultra 265/H.265/H.264 |
| Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature) |
| Smart |
| VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) |
| VCA Search |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection(UMD) |
| Smart Intrusion Prevention (SIP), UMD by Camera |
Total 4-ch |
| General Alarm |
| General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface |
| Network Interface |
1 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 2 x USB2.0 |
| RS232 |
NA |
| RS485 |
NA |
| Alarm In |
NA |
| Alarm Out |
NA |
| PoE |
| Interface |
8 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| Max Power |
Max 30W for single port
Max 75W in total |
| Supported Standard |
IEEE 802.3at, IEEE 802.3af |
| General |
| Power Supply |
52V DC
Power Consumption: ≤9 W (without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″) |
| Weight (without HDD) |
≤1.1kg (2.43lb) |
| Certification |
| Certification |
CE, FCC, UL, RoHS, WEEE |
| CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC |
Part15 Subpart B, ANSI C63.4 |
| Model |
EC-T4F28M |
| Camera |
| Sensor |
1/3″, 4.0 megapixel, progressive scan, CMOS |
| Min. Illumination |
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N |
>56dB |
| WDR |
DWDR |
| Lens |
| Lens Type |
2.8mm @2.0, Fixed-focal |
| Lens Mount |
M12 |
| Angle of View (H) |
97.0° |
| Angle of View (V) |
52.2° |
| Angle of View (O) |
107.5° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| Illuminator |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~6144 kbps |
| U-code |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Events |
| Behavior Detection |
Cross line, intrusion(based on human body detection) |
| Motion detection, tampering alarm |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Storage |
| Edge Storage |
Micro SD, up to 128GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC |
FCC: FCC Part 15 |
| Safety |
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.0W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
N/A |
| Ingress Protection |
Ingression protection: IP67 |
