XLR-ACC-BLN5-HD

$13.75

Pair of HD Video Baluns with 6” BNC Male to RJ-45 Connector, up to 250M Transmission, DC Male & DC Female Power Connections

Categories: AccessoriesTags: Video Baluns

Product Overview

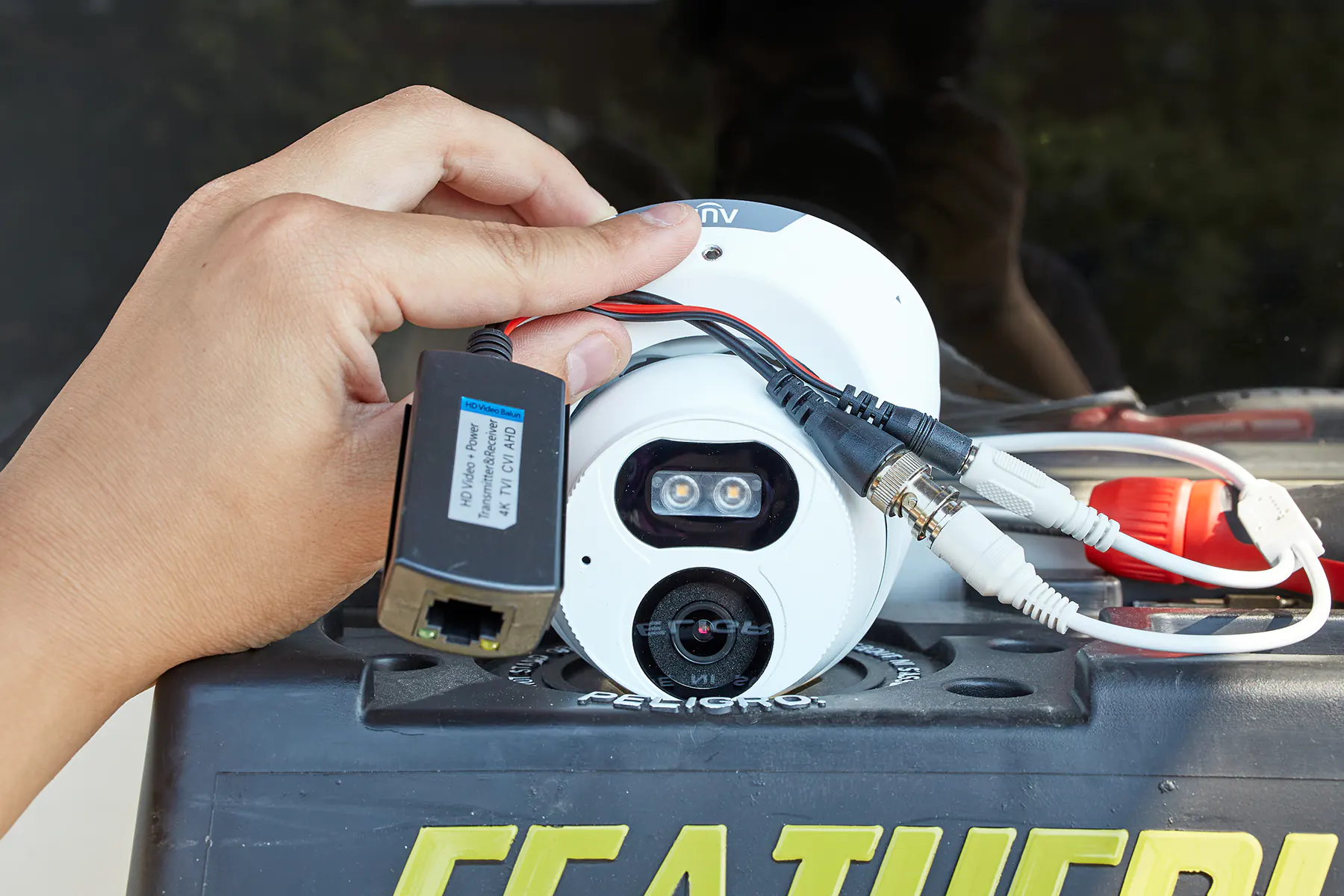

This video balun has an RJ45 ethernet port, which allows you to carry both power and data over a single Cat5e / Cat6 wire. Comes in a pair, with one side meant to be connected near the DVR, and another near the security camera. It’s designed for use with analog cameras, including TVI, CVI, AHD, and CVBS formats.

Features

  • Transmission: 300M (720p & 960H), 250M (1080p)
  • Compatible with TVI, CVI, AHD & 960H Format
  • 6” BNC Male to RJ-45 Connector
  • DC Male & DC Female Power Connections
  • Built-in ESD, EFT & Transient Voltgage Protection
  • Interlocking Design

Specification

Connections Video: RJ-45 to BNC Male
Power: 12VDC Male to 12VDC Female
Video Signal 1Vp-p, 75 Ohms
Bandwidth 50Hz ~ 60MHz (-3dB)
Transmission Distance Video: 300M (720p & 960H) 250M (1080p)
ESD Protection 30KV (Air), 15KV (Contact); IEC 61000-4-2 Compliant
Cable Type For Use with CAT5e/CAT6 UTP Cable
Power Type Supports 12VDC & 24VAC Power
EFT Protection 40A (5/50ns); IEC 61000-4-4 Compliant
Lightning Protection 2A (8/20μs); IEC 61000-4-5 Compliant
Surge Protection Attack Time <1nS
Dimensions 81mm x 20mm x 30mm (body) w/ 6″ BNC & Power Pigtails
Weight 0.2lb
