UNV-KIT-301-W8-4B2-1TB – Uniview 4 WiFi Kit

$429.00

Uniview package kit including NVR301-08LS2-W, 4* IPC2122LB-ABF40WK-G, and 1TB Western Digital Purple HDD

Out of stock

Product Overview

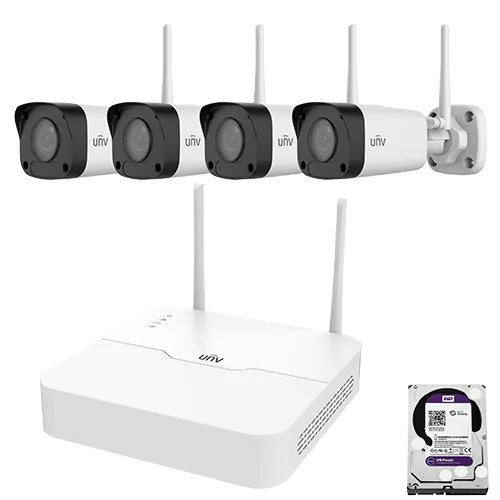

This Uniview package kit features a wireless NVR301-08LS2-W, 4*IPC2122LB-ABF40WK-G wireless cameras, and a WD purple 1TB HDD. The powerful built-in dual antennas provide up to 280m wireless range in an open environment. Additionally, each camera is paired to the NVR for automatic configuration. Simply connect the NVR and cameras to a power source and they will automatically connect within range.

IPC2122LB-ABF40WK-G is an entry-level security camera. This mini-bullet camera is great for providing sharp video surveillance of a scene at a low price. Effective indoors and outdoors due to IP67 weather resistance. Additionally, built-in IR provides illumination up to 30m in very dark environments.

The 4.0mm lens provides a slightly narrower field of view with a higher pixel density.

Features – Uniview Wifi Camera Kit

NVR301-08LS2-W

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 5MP resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade

IPC2122LB-ABF40WK-G

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264
  • Triple streams
  • ONVIF Conformance
  • Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67

Specification

Model NVR301-08LS2-W
Video/Audio Input
IP Video Input 8-ch
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
Recording Resolution 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/ Playback 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080P@25, 8 x 960P@25, 8 x 720P@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel：2 x USB2.0
Wi-Fi
Frequency 2.4GHz
Transmission Rate 150Mbps
Wireless Standards IEEE 802.11b/g/n
Wireless Range 280m(open environment)
General
Power Supply 12V DC
Power Consumption: ≤ 9 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 205mm × 205mm × 46mm (8.1″ ×8.1″×1.8″)
Weight ( without HDD ) ≤0.58Kg(1.28lb)
Model IPC2122SR3-F40W-D
Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 60 24 12 6
Angle of view(H) 86.5°
Angle of View (V) 44.1°
Angle of View (O) 106.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.02 Lux (F2.0 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:2MP (1920×1080): Max. 20 fps;
Sub Stream: 720P (1280×720): Max. 20 fps;
Third Stream: 4CIF (704×576): Max. 20 fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible Integration ONVIF (Profile S, Profile T), API
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm
Receive Sensitivity 802.11b: -90dBm @ 11Mbps (Typical)
802.11g: -75dBm @ 54Mpbs (Typical)
802.11n: -74dBm (Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC(+/-25%)
Power consumption: Max 6.4 W
Dimensions (L × W × H) 162.6 x 62.4 x 62.7 mm (6.4″x2.5″x2.5″)
Weight 0.25 kg (0.55 lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection IP66
Reset Button Supported
