$40.00

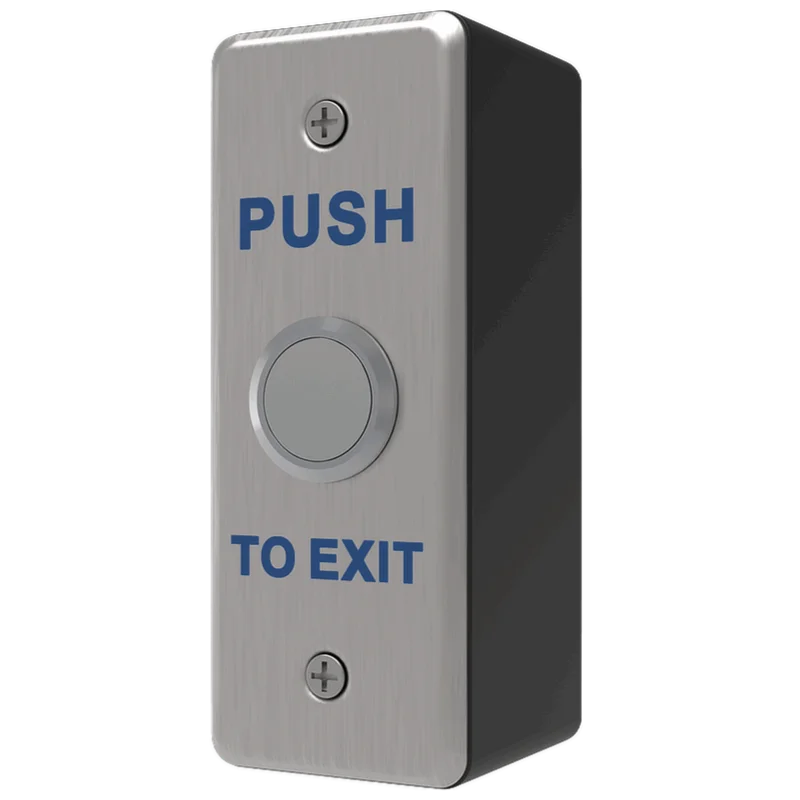

This is a narrow push to exit switch with a 1-inch button in the center. This allows you to install it underneath concierge desks, allowing them to open the door without accidentally pressing it. This compact push switch measures 1.75″ across, making it suitable for installation in tight places.
The PB2B is a compact, weather-resistant push switch designed for tight installations such as door frames.
It features a rugged stainless steel faceplate and a 1″ diameter high-visibility button for easy activation.
Powered by 12–24VDC, it supports N/O, N/C, and fail-safe/fail-secure selectable outputs, allowing seamless integration with access control or automatic door systems.
Its narrow 1-3/4″ width makes it perfect for constrained mounting locations.
| Switch Type: |
Momentary
|
| Contact Type: |
COMMON / N.O. /N.C.
|
| Current Rating: |
2A @ 36 VDC, 3A @ 220VAC
|
| Mounting: |
Narrow (Jamb)
|
| Dimensions: | 1-3/4″ x 4-1/2″ x 1-37/64″ (44mm x 114mm x 40mm) |
