Name: MZE-WB5501B
SKU: 14226
Availability: InStock

A wireless wave to open switch with an icon in the center that shows a hand waving. Underneath, the text Wave to Open is engraved in blue.

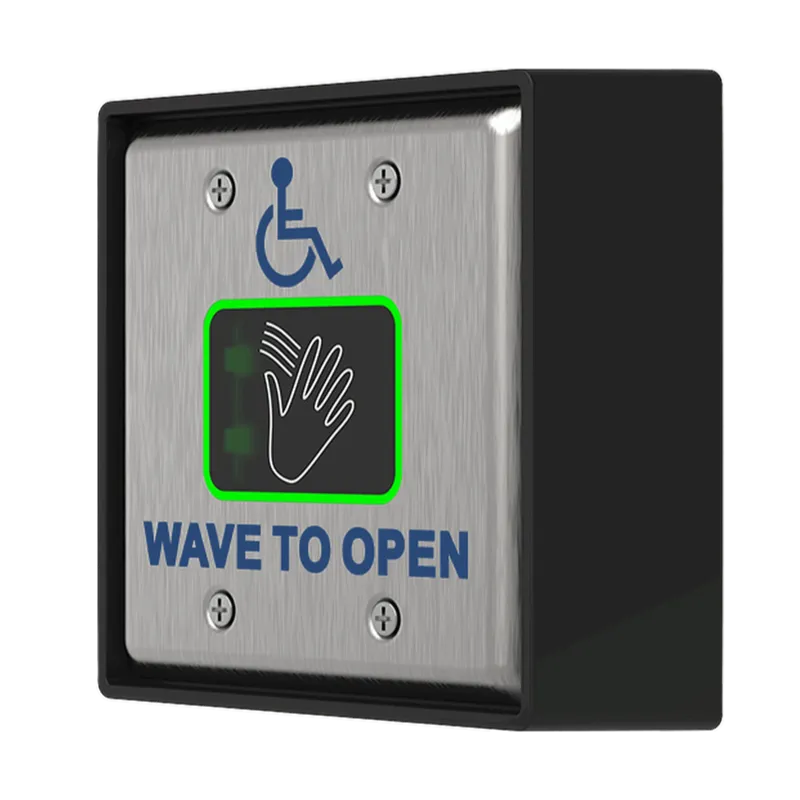

A side view of a wave to open accessibility button, designed for operating doors without needing to physically push a switch.

MZE-WB5501B

$93.00

This is a wireless touch-free switch that can be triggered by waving your hand in front. The blue LED will turn green whenever the switch is successfully activated, providing immediate feedback to users. Since this unit has a built-in wireless transmitter, you can power it via a battery for cable-free installation. Then, use the WR12 Receiver to wirelessly pick up the signal and transmit it to the door operator.

Categories: Door Access Controls, Touch-Free Wave SwitchesTags: MZE Door Controls

The WB5501B offers a clean and reliable wireless activation solution designed for high-traffic automatic door and access control systems.

Product Overview

It enhances hygiene and user convenience while maintaining stable wireless performance in all environments.

With adjustable sensor distance and delay time settings, the WB5501B ensures accurate detection and consistent operation in diverse indoor or outdoor conditions.

Specification

Activation Type:	Wireless Touch-free infrared sensor
Detection Range:	Adjustable 3″–9″ (7–23 cm)
Power Supply:	12/24V DC ±12% or battery powered
Contact Output:	(1) Form ‘C’ contact rated at 1A @ 30V DC
Illumination:	LED ring indicator (Dual color – Blue / Green)
Construction:	Double-gang stainless steel faceplate
Installation Type:	Surface or flush mount
Compatibility:	All automatic door and access control systems
Operating Temperature:	–20 °C to +55 °C (–4 °F to +131 °F)
Warranty:	3 years
