LYS-L7-W

$187.00

This is an in-wall Wi-Fi 7 AP with 1× Gigabit WAN port and 4× Gigabit LAN ports. It has 4 spatial streams, supports 64+ simultaneous users, and has a coverage area of 55 m².

Note: This product is not available yet. It’s scheduled to arrive in June 2026.

Product Overview

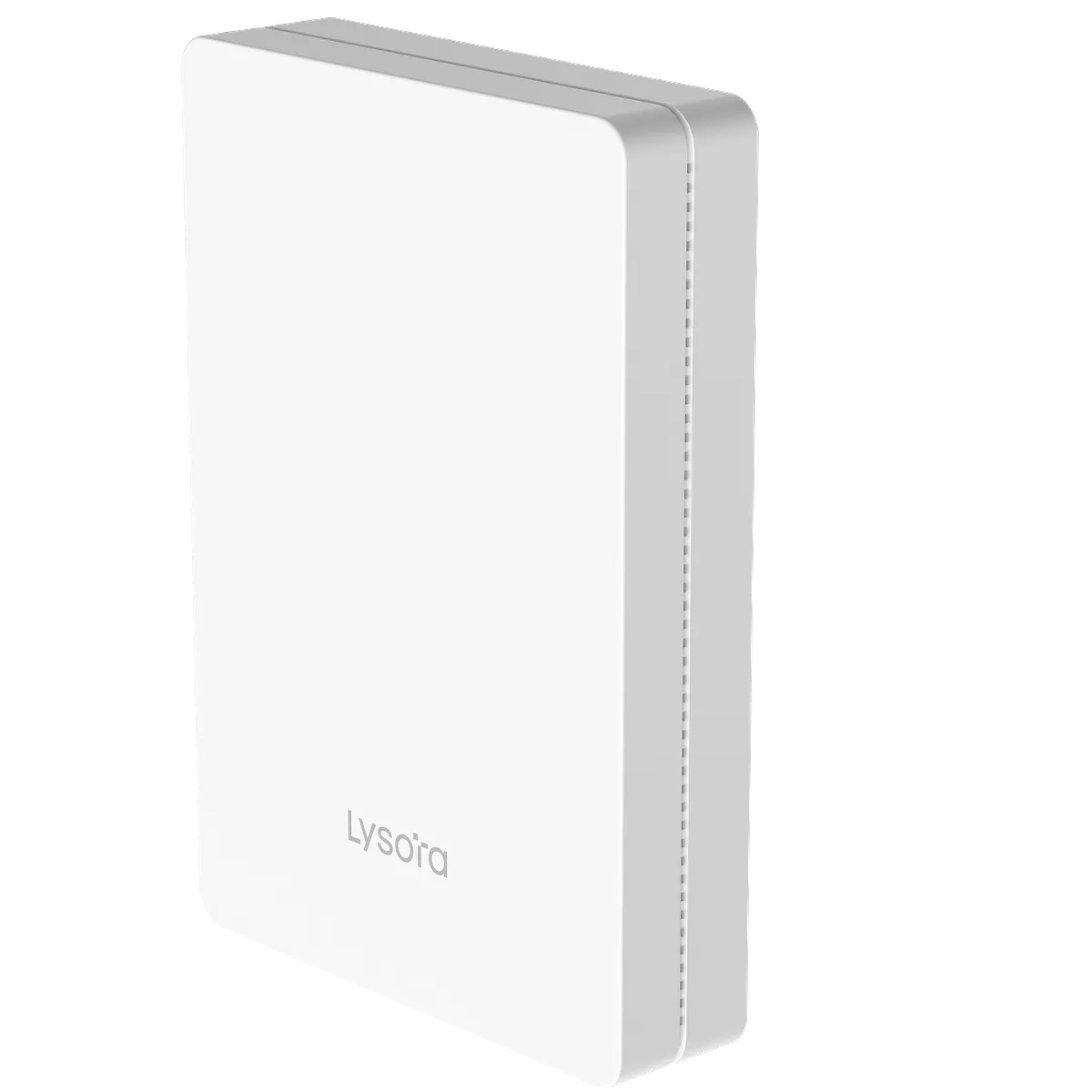

The Lysora L7-W is an in-wall Wi-Fi 7 AP, designed for low to medium-density applications. It supports 55+ users, with a maximum bandwidth of 3570 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 5 spatial streams with a coverage area of 55 m² (590 ft²).

This access point can be powered via PoE+ and consumes up to 30 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features –Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point

  • Wi-Fi 7 BE3600 dual-band wall-plate access point
  • Up to 4 spatial streams
  • 1 x 100/1000/2500BASE-T port and 4 x 10/100/1000BASE-T ports (with 1 port supporting PoE Out )
  • Unified networking and management based on Lysora Cloud App
  • Max power consumption < 15 W (when the PoE output of LAN 4 port is disabled)
  • 802.3af/at PoE input

Specification

Overview
Dimensions 86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.)
Weight ≤ 0.27 kg (0.60 lbs.) (without packaging materials)
Coverage Area 55 ㎡ (592.02 square ft.)
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
Mounting Type In-wall (Mounts Included)
Hardware & Networking
Networking Interface (1) 2.5GbE RJ45 port (WAN)
(4) Gigabit RJ45 ports (1 port supports 15 W PoE output)
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7)
Antenna Gain 2.4 GHz: 2.84 dBi, 5 GHz: 4.56 dBi
Max. Transmit Power 2.4 GHz: 20 dBm, 5 GHz: 21.7 dBm
LED 1 × System Status LED
Button 1 × Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 688 Mbps, 5 GHz: 2882 Mbps
Max. Client Count 64 (2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO
Spatial Streams 4
Power Specifications
Power Consumption ≤ 15 W (excluding PoE output)
Power Method PoE+
