LYS-L7

$176.00

This is a Wi-Fi 7 wireless AP, designed for medium-density projects. It has 5 spatial streams, supports 110+ simultaneous users, and has a coverage area of 145 m².

Product Overview

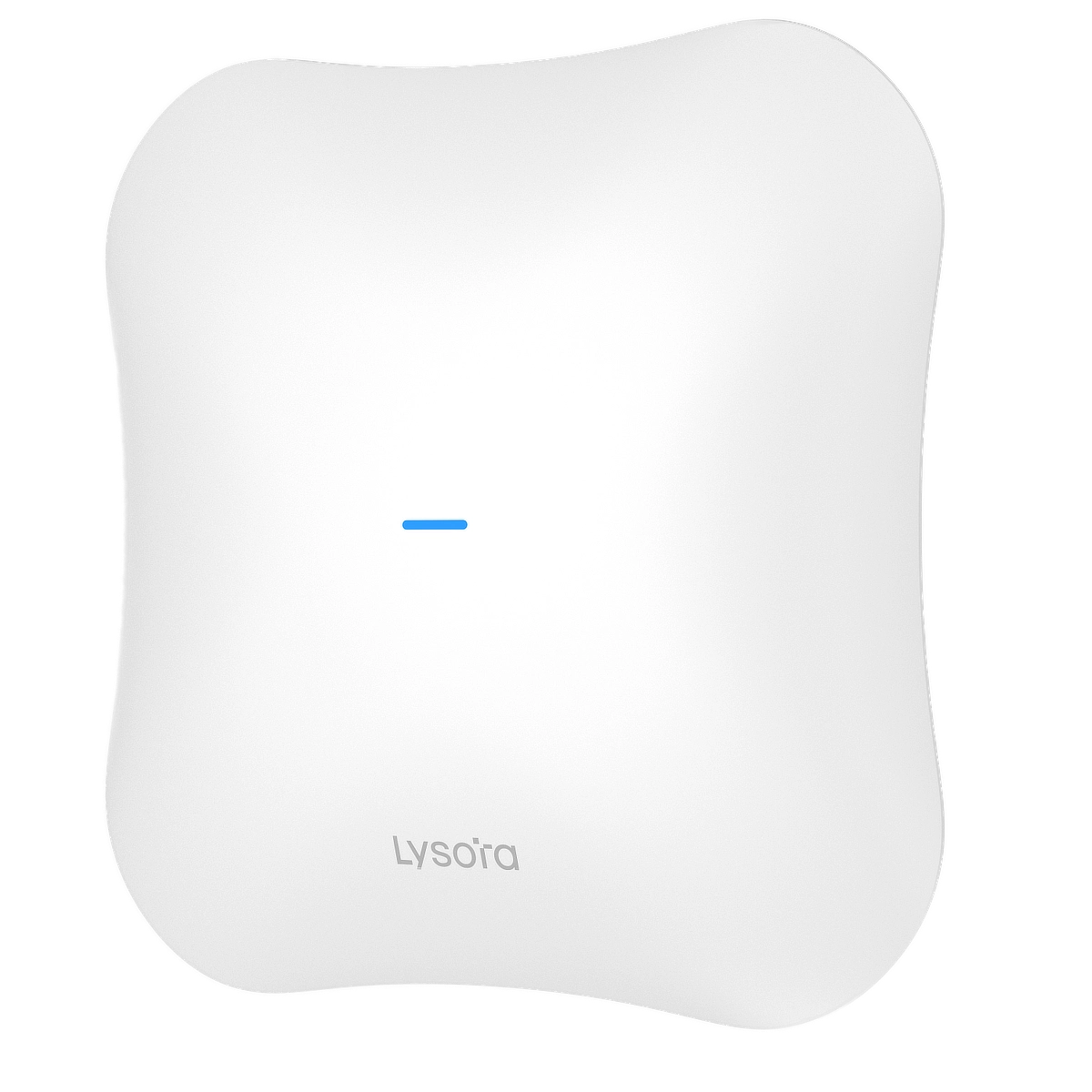

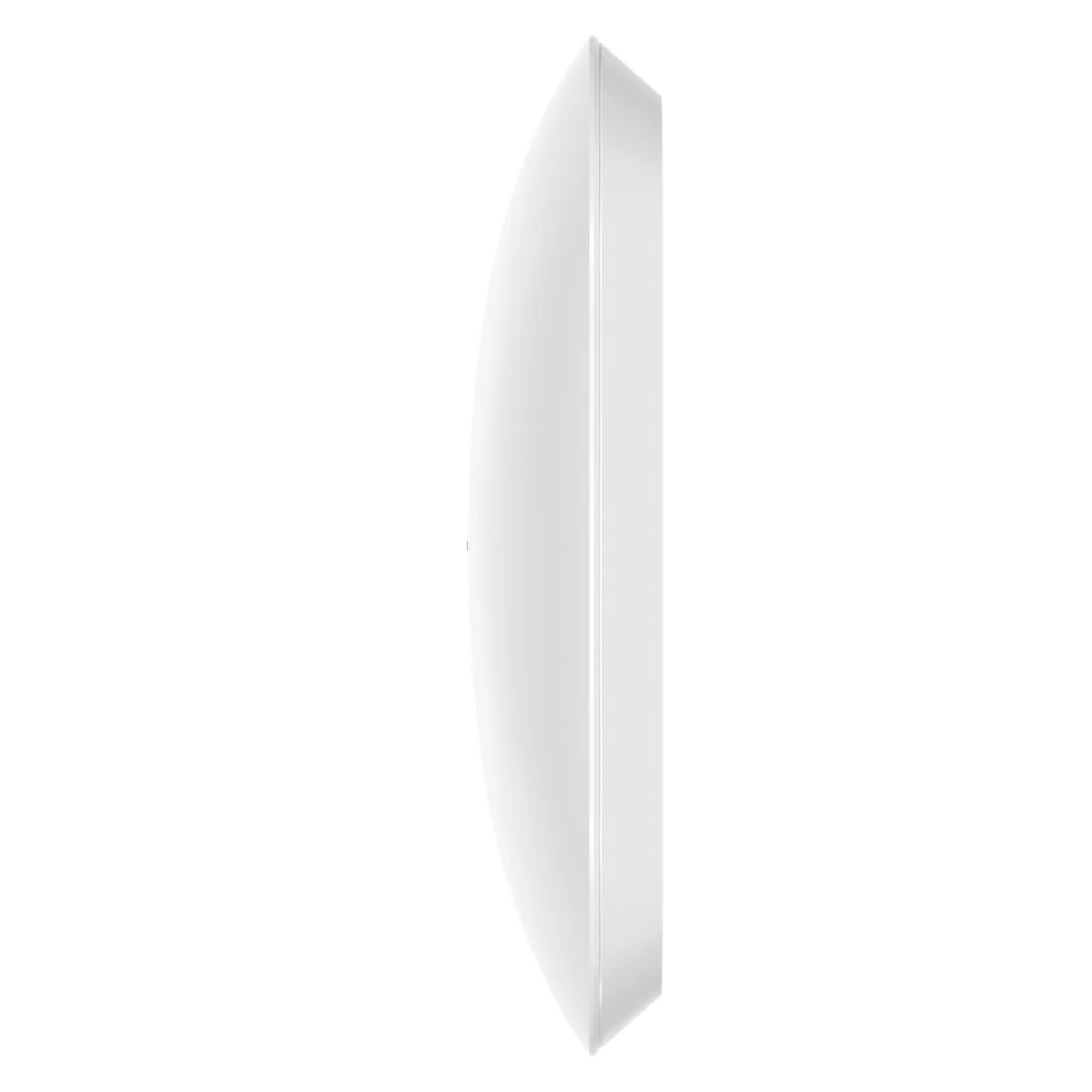

The Lysora L7 is a Wi-Fi 7 ceiling-mounted access point, designed for medium-density applications. It supports 110+ users, with a maximum bandwidth of 5011 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 5 spatial streams with a coverage area of 145m² (1560ft²).

This access point can be powered via PoE+ and consumes up to 30 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features –Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point

  • Wi-Fi 7 BE5000 dual-band ceiling mount access point
  • Dual-band 2.4 GHz/5 GHz, high throughput with 5 spatial streams
  • 1 x 100/1000/2500BASE-T port and 1 x 100/1000BASE-T port
  • AP and routing mode
  • Unified networking and management based on Lysora Cloud App
  • Max power consumption < 30 W
  • 802.3at PoE In and 12V DC power supply (PoE injector and DC adapter purchased separately)

Specification

Overview
Dimensions 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.)
Weight ≤ 0.75 kg (1.65 lbs.)
Coverage Area 145㎡ (1560 square ft.)
Mounting Type Ceiling Mount, Wall-mounted (Mounts Included)
Hardware & Networking
Networking Interface (1) 2.5GbE RJ45 port
(1) 1GbE RJ45 port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7)
Antenna Gain 2.4 GHz: 3.00 dBi, 5 GHz: 4.00 dBi
Max. Transmit Power 2.4 GHz: 27 dBm, 5 GHz: 29.7 dBm
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps
Max. Client Count 110+ simultaneous clients
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 3 x 3 MU-MIMO
Spatial Streams 5
Power Specifications
Power Consumption ≤ 30 W
Power Method PoE+ or DC (12 V, 2.5A) (Adapter not included)
