LYS-L7Lite

$144.00

This is a Wi-Fi 7 wireless AP, designed for low to medium-density projects. It has 4 spatial streams, supports 100+ simultaneous users, and has a coverage area of 140 m².

Product Overview

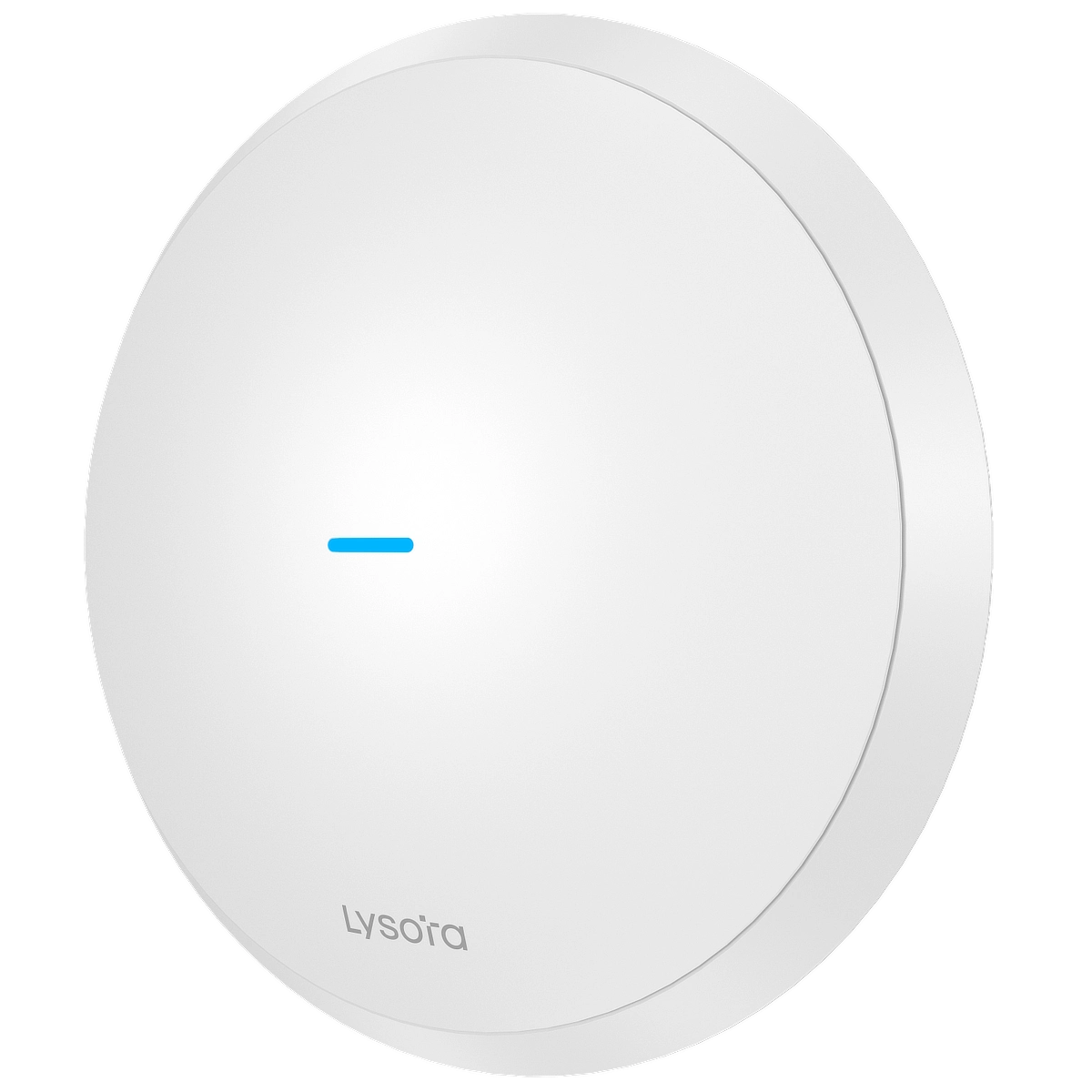

The Lysora L7Lite is a Wi-Fi 7 ceiling-mounted access point, designed for low to medium-density applications. It supports 100+ users, with a maximum bandwidth of 3570 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 140m² (1500ft²).

This access point can be powered via standard PoE and consumes up to 14 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features –Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point

  • Wi-Fi 7 BE3600 dual-band ceiling mount access point
  • Dual-band 2.4 GHz/5 GHz, high throughput with 4 spatial streams
  • 1 x 100/1000/2500BASE-T port
  • AP and routing mode
  • Unified networking and management based on Lysora Cloud App; max power consumption < 14 W
  • 802.3at PoE In and 12 V DC power supply

Specification

Overview
Dimensions Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)
Weight ≤ 0.6 kg (1.32 lbs.)
Coverage Area 140㎡ (1500 square ft.)
Mounting Type Ceiling Mount, Wall-mounted (Mounts Included)
Hardware & Networking
Networking Interface (1) 2.5GbE RJ45 port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7)
Antenna Gain 2.4 GHz: 3.23 dBi, 5 GHz: 4.44 dBi
Max. Transmit Power 2.4 GHz: 25.7 dBm, 5 GHz: 25 dBm
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 688 Mbps, 5 GHz: 2882 Mbps
Max. Client Count 100+ simultaneous clients
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO
Spatial Streams 4
Power Specifications
Power Consumption < 14 W
Power Method PoE or DC (12 V, 1.5A) (Adapter not included)
