LYS-L7Pro

$286.00

This is a Wi-Fi 7 wireless AP, designed for high-density projects. It has 8 spatial streams, supports 200+ simultaneous users, and has a coverage area of 145 m².

Note: This product is not available yet. It’s scheduled to arrive in June 2026.

Product Overview

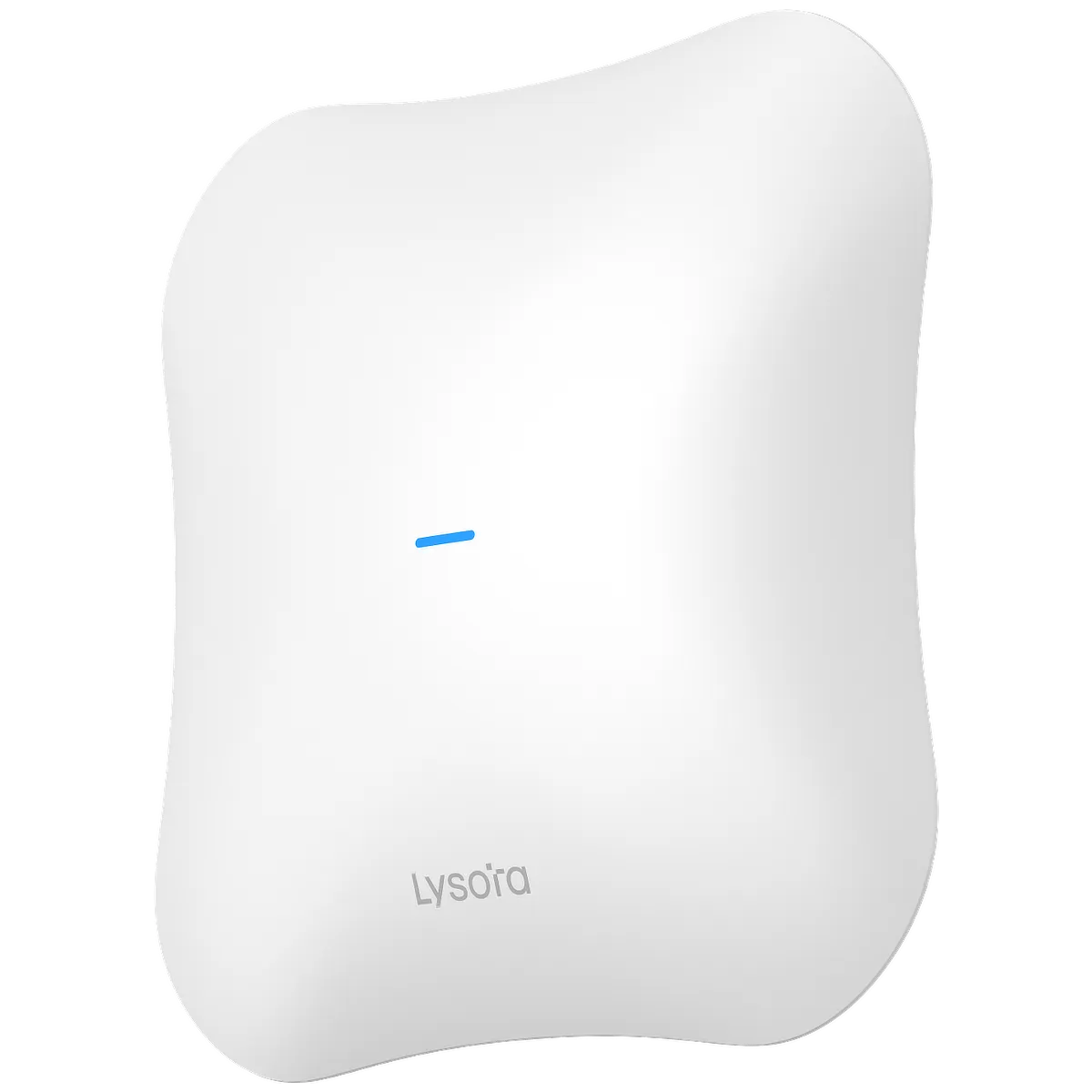

The Lysora L7PRo is a Wi-Fi 7 ceiling-mounted access point, designed for high-density applications. It supports 200+ users, with a maximum bandwidth of 13657 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 8 spatial streams with a coverage area of 145m² (1560ft²).

This access point can be powered via PoE+ and consumes up to 30 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features –Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point

  • Wi-Fi 7 BE14000 tri-band ceiling mount access point
  • Tri-band 2.4 GHz/5 GHz/6 GHz, high throughput with 8 spatial streams
  • 1 x 100/1000/2500BASE-T port and 1 x 10GE SFP+ port
  • In compliance with 802.11be
  • AP mode and routing mode
  • Layer 2 and Layer 3 roaming
  • Unified networking and management based on Lysora Cloud App
  • Max power consumption < 30 W; 802.3at PoE In and 54 V DC power supply (PoE injector and DC adapter purchased separately)

Specification

Overview
Dimensions 220 mm x 220 mm x 45 mm (8.66 in. x 8.66 in. x 1.77 in.)
Weight ≤ 1.1 kg (2.43 lbs.)
Coverage Area 145㎡ (1560 square ft.)
Mounting Type Ceiling Mount, Wall-mounted (Mounts Included)
Hardware & Networking
Networking Interface (1) 2.5GbE RJ45 port
(1) IEEE 802.11 a/b/g/n/ac/ax/be
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7)
Antenna Gain 2.4 GHz: 3.60 dBi, 5 GHz: 5.90 dBi
Max. Transmit Power 2.4 GHz: 25 dBm, 5 GHz: 25.7 dBm, 6 GHz: 22.7 dBm
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps, 6 GHz: 8646 Mbps
Max. Client Count 200+ simultaneous clients
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 3 x 3 MU-MIMO, 6 GHz: 3 x 3 MU-MIMO
Spatial Streams 8
Power Specifications
Power Consumption ≤ 30 W
Power Method PoE+ or DC (54 V, 0.55 A) (adapter included)

Download
