LYS-CPE3-P

$83.00

This is a wireless bridge with a range of up to 3 KM. It supports PoE input (24V & 48V) as well as regular PoE output (up to 15.4 W), letting you power up to two cameras directly from the bridge.

You can quickly pair it to wireless bridge by pressing the one-touch pairing button. A single receiver can be paired with up to five transmitters.

Product Overview

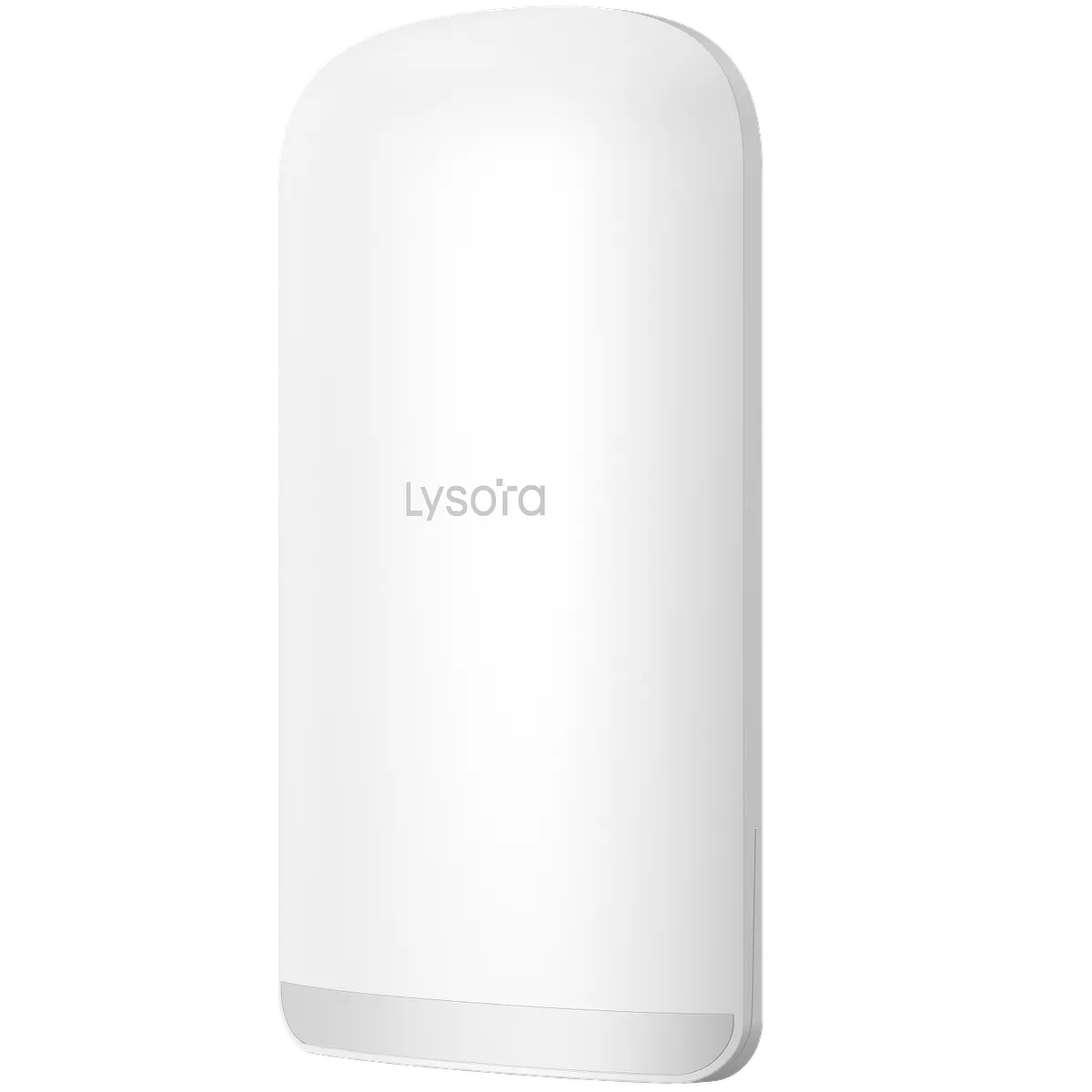

The Lysora CPE3-P is a wireless bridge that’s specially designed for video surveillance. It has two PoE outputs that can supply up to 15.4W (total budget) to security cameras – allowing you to streamline your installations and saving you the cost of a PoE switch or injector.

This wireless bridge comes with a 24V passive PoE injector, but you can also power it using regular 48V PoE. This means you can connect it directly to the back of the NVR – saving you from needing to find an extra power outlet – and making your installation that much cleaner.

Features – 5 GHz CPE3-P with 13 dBi Built-in Antenna

  • 5 GHz wireless bridge CPE with maximum wireless rate of 867 Mbps
  • Equipped with a 13 dBi high-gain directional antenna for stable long-distance transmission
  • Supports point-to-multipoint deployment with TDMA and up to 5 CPE clients
  • Up to 3 km (1.86 miles) wireless transmission distance
  • Three 10/100 Mbps Ethernet ports for flexible connectivity
  • IP55 weatherproof enclosure designed for outdoor deployment
  • Managed through eWeb and Lysora Cloud for remote monitoring and configuration
  • Includes 24 V DC power adapter and PoE injector for easy installation

Specification

Overview
Dimensions 103mm x 53.4 mm x 199 mm (excluding mounting bracket)
Weight 0.37 kg (without packaging); 0.91 kg (with packaging)
Coverage Area 3km (1.86 miles)
Mounting Type Wall or Pole
Hardware & Networking
CPU Single-core processor, 575/580 MHz clock frequency
Flash Memory & RAM  16 MB Flash Memory, 64 MB RAM
Networking Interface 3 x 10/100BASE-T ports
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
Antenna Gain 2.4 GHz: 2 dBi, 5 GHz: 13 dBi
Antenna Orientation Horizontal: 30°, Vertical: 30°
Max. Transmit Power 2.4 GHz: 20 dBm
5 GHz: 29 dBm
Power Specifications
Power Consumption 9 W (Without PoE Out)
24.4 W (With PoE Out)
Power Method 12 V, 1 A DC connector or 24 V, 0.6 A DC Passive PoE injector
Also supports standard PoE & PoE+ (IEEE 802.3af, 802.3at)
PoE Budget 15.4 W for two ports (when powered by 24 V passive PoE or 802.3at)
When powered by 12 V DC or 802.3af, the device cannot supply power to other devices via PoE
Performance & Bridging
Max Wireless Data Rate 2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Max Bridge Distance 3 km (1.86 miles)
Bridge Throughput (HT40) 0.5 km: 90 Mbps
1 km: 80 Mbps
2 km: 60 Mbps
3 km: 40 Mbps
Recommended Cameras (4-5 Mbps) 0.5 km: 12 cameras
1 km: 10 cameras
2 km: 8 cameras
3 km: 5 cameras
Software & Management
Working Modes Base Station, CPE, Bridge
Management Features SSID hiding, Antenna alignment, Spectrum scan, VLAN, SNMP, SSH
Configuration Web management (via local IP address) and Cloud management (via Lysora Cloud Portal)
Environmental & Certifications
Operating Temperature -30°C to +55°C (-22°F to +131°F)
Weather Resistance IP55 rating
Certifications FCC, IC, cTUVus
Compliance NDAA Compliant
