LYS-Base5i

$131.00

This is a full Gigabit wireless bridge with a horizontal beamwidth of 120° and a range of up to 5 KM. It’s designed to serve as the base station for up to 16 transmitters in the field.

Note: This product is not available yet. It’s scheduled to arrive in June 2026.

Product Overview

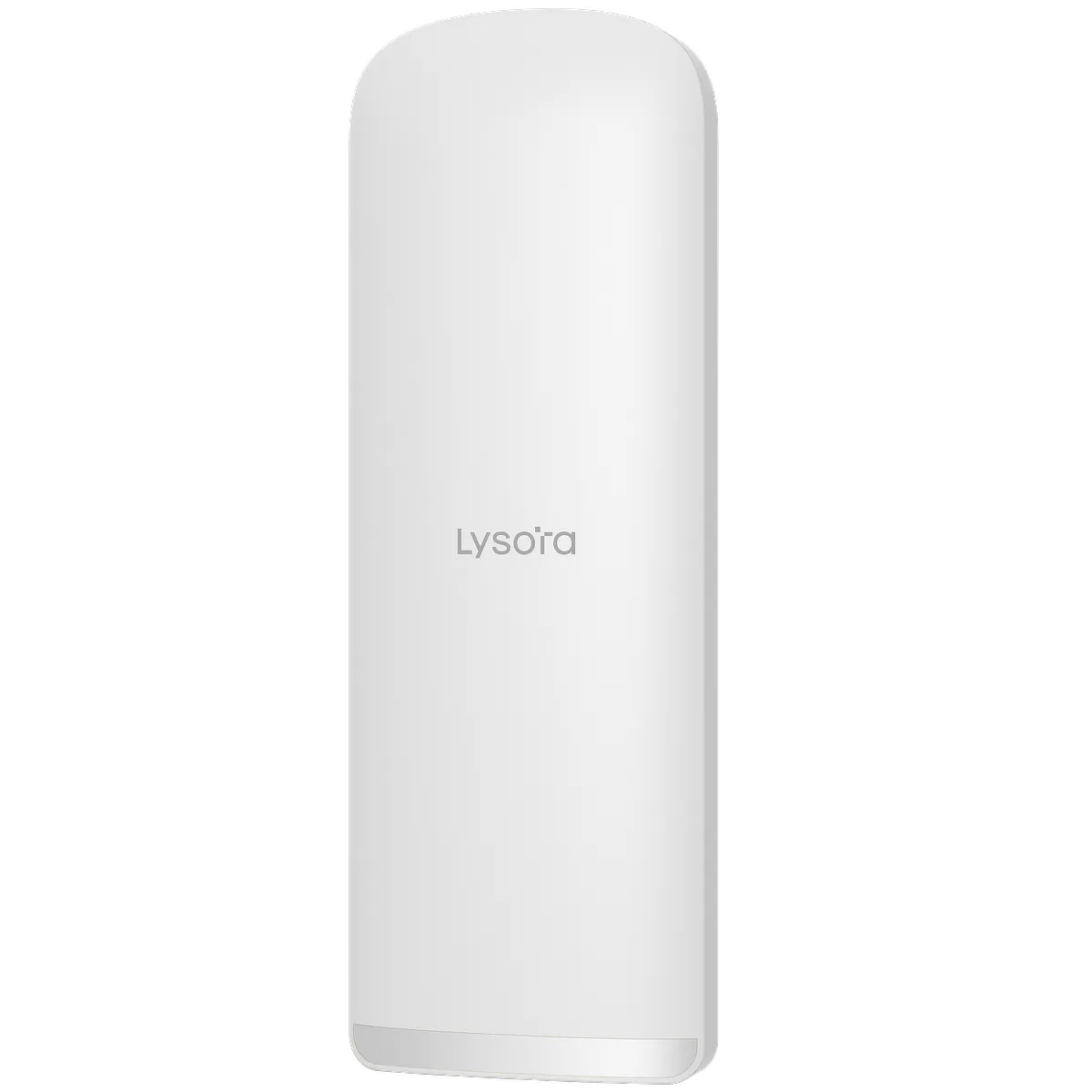

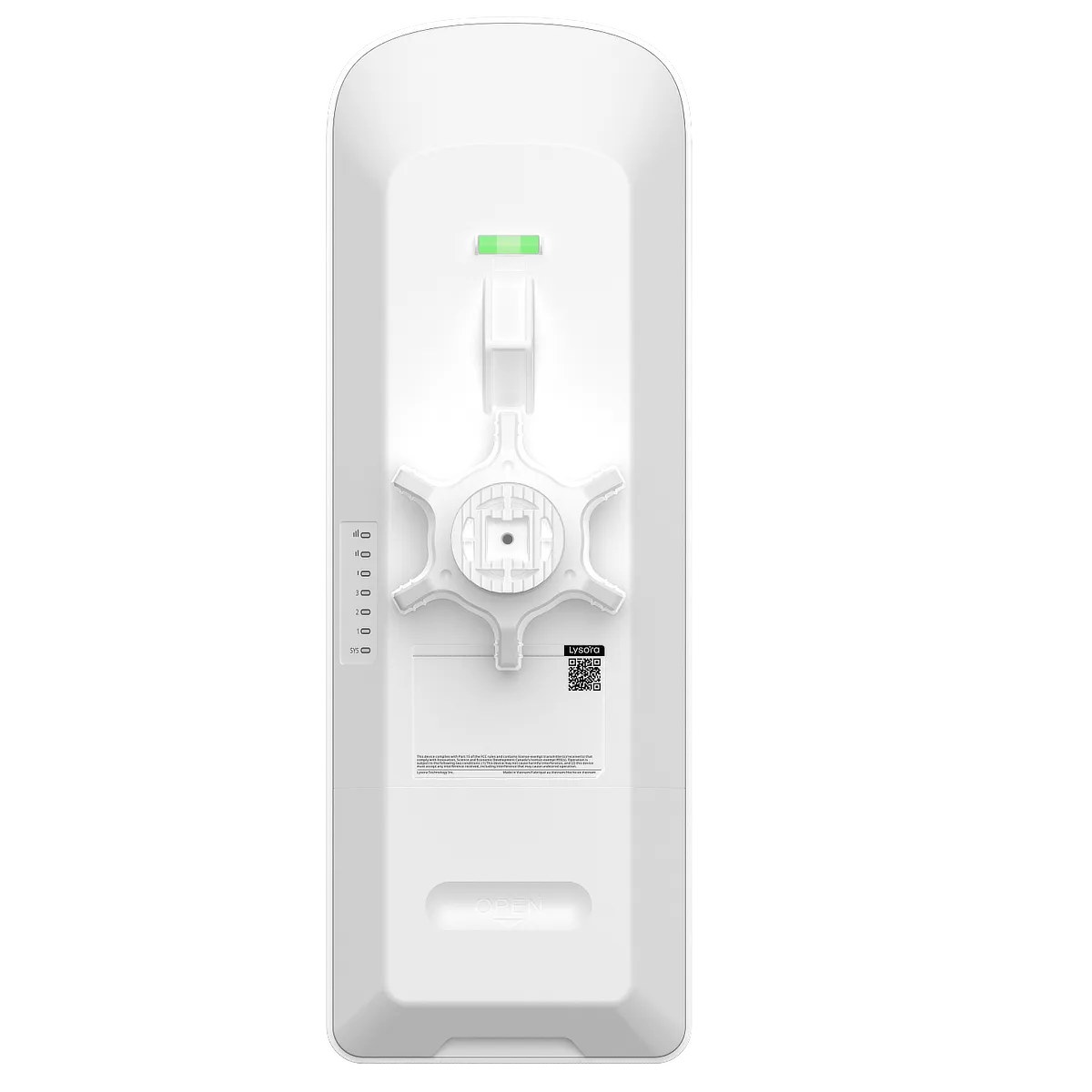

The Lysora Base5i is a wireless bridge with a 120° beamwidth antenna for covering a large area. It’s designed to serve as the base station for a 1:16 point to multi-point wireless bridge network. With a maximum range of up to 5 KM, the Base5i is able to connect to both CPE3-P and CPE5 bridges.

The factory reset button also doubles as a one-touch pairing button. Simply tap the button at the bottom to pair all nearby wireless bridges to the network. Within a minute or two, they’ll become paired. If you hold the reset button down for 10 seconds, the bridge will return to its factory default settings.

Lysora’s Cloud Portal makes it easy to manage Base5i remotely. From the cloud portal, you can adjust the wireless frequencies of your bridges, perform a spectrum scan to find a channel with less interference, and upgrade the firmware of your devices.

Features – 5 GHz BaseStation with 15 dBi Built-in Antenna

  • 5GHz Wireless Bridge Base Station
  • Max 867Mbps wireless rate
  • 15dBi high gain directional built-in 120° antenna
  • Support 5KM long distance data transmission with 3GE ports

Specification

Overview
Dimensions 240 mm x 133mm x 108 mm (excluding mounting bracket)
Weight 0.56 kg (without packaging); 2.55 kg (with packaging)
Coverage Area 5 km (3.11 miles)
Mounting Type Wall or Pole
Hardware & Networking
CPU Dual-core processor, 880 MHz clock frequency per core
Flash Memory & RAM  16 MB Flash Memory, 128 MB RAM
Networking Interface 3 x 10/100/1000 BASE-T ports
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
Antenna Gain 2.4 GHz: 2 dBi, 5 GHz: 16 dBi
Antenna Orientation Horizontal: 31°, Vertical: 14°
Max. Transmit Power 2.4 GHz: 20 dBm
5 GHz: 29 dBm
Power Specifications
Power Consumption ≤ 12 W
Power Method 12 V, 1 A DC connector or 24 V, 0.6 A DC Passive PoE injector
Also supports standard PoE & PoE+ (IEEE 802.3af, 802.3at)
PoE Budget  –
Performance & Bridging
Max Wireless Data Rate 2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Max Bridge Distance 5 km (3.11 miles)
Bridge Throughput (HT40) 1 km: 230 Mbps
3 km: 200 Mbps
5 km: 150 Mbps
Recommended Cameras (4-5 Mbps) 1 km: 30 cameras
3 km: 25 cameras
5 km: 12 cameras
Software & Management
Working Modes Base Station, CPE, Bridge
Management Features SSID hiding, Antenna alignment, Spectrum scan, VLAN, SNMP, SSH
Configuration Web management (via local IP address) and Cloud management (via Lysora Cloud Portal)
Environmental & Certifications
Operating Temperature -30°C to +55°C (-22°F to +131°F)
Weather Resistance IP55 rating
Certifications FCC, IC, cTUVus
Compliance NDAA Compliant
