LYS-CPE5

$197.00

This is a wireless bridge with a range of up to 5 KM. The ports are full Gigabit, which makes these bridges suitable for both CCTV cameras and high-speed internet connectivity. It has a horizontal beam-width of 31° and 14° vertically.

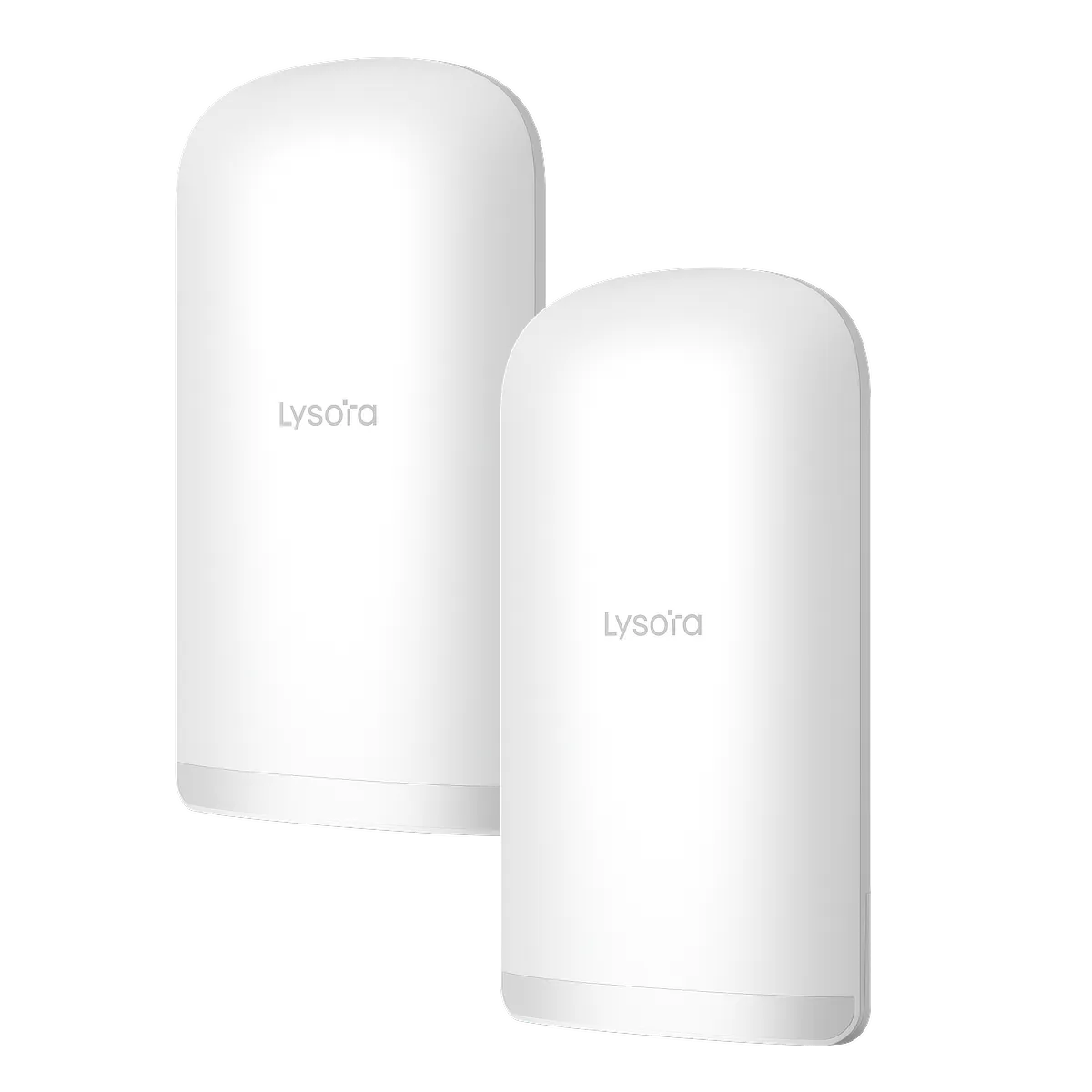

These are sold pairs and come pre-paired out of the box. To add more transmitters, hold the pair button on the main receiver for 2 seconds to enroll other nearby bridges (within 50 m).

Product Overview

The Lysora CPE5 is a wireless bridge with gigabit ports, supporting full bandwidth 10/100/1000 Mbps data transmission across distances of up to 5 km. They are sold in pre-paired kits for easy installation, but can be paired with up to 5 transmitters for point-to-multipoint connectivity.

These bridges can be powered via the included 24V passive PoE adapter, or via 48V PoE – which means you can connect it directly to a PoE switch or to the back of an NVR.

There’s a reset button on the back, which will restore the device to factory default settings after being held for 10 seconds. If you hold it for two seconds, it will quickly pair nearby Lysora wireless bridges to the same network, saving you lots of time when it comes to setting up point-to-multipoint networks.

Features – 5 GHz CPE5 with 16 dBi Built-in Antenna

  • 5 GHz wireless bridge delivering up to 867 Mbps wireless throughput
  • Built-in 16 dBi high-gain directional antenna for stable long-distance links
  • Supports point-to-multipoint (PTMP) connections with up to 5 CPEs via TDMA
  • Reliable long-distance transmission up to 5 km (3.11 miles)
  • Three Gigabit Ethernet ports for flexible wired connectivity
  • IP55 weatherproof design for outdoor deployments
  • Web and Lysora Cloud management supported

Specification

Overview
Dimensions 240 mm x 133mm x 108 mm (excluding mounting bracket)
Weight 0.56 kg (without packaging); 2.55 kg (with packaging)
Coverage Area 5 km (3.11 miles)
Mounting Type Wall or Pole
Hardware & Networking
CPU Dual-core processor, 880 MHz clock frequency per core
Flash Memory & RAM  16 MB Flash Memory, 128 MB RAM
Networking Interface 3 x 10/100/1000 BASE-T ports
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
Antenna Gain 2.4 GHz: 2 dBi, 5 GHz: 16 dBi
Antenna Orientation Horizontal: 31°, Vertical: 14°
Max. Transmit Power 2.4 GHz: 20 dBm
5 GHz: 29 dBm
Power Specifications
Power Consumption ≤ 12 W
Power Method 12 V, 1 A DC connector or 24 V, 0.6 A DC Passive PoE injector
Also supports standard PoE & PoE+ (IEEE 802.3af, 802.3at)
PoE Budget  –
Performance & Bridging
Max Wireless Data Rate 2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Max Bridge Distance 5 km (3.11 miles)
Bridge Throughput (HT40) 1 km: 230 Mbps
3 km: 200 Mbps
5 km: 150 Mbps
Recommended Cameras (4-5 Mbps) 1 km: 30 cameras
3 km: 25 cameras
5 km: 12 cameras
Software & Management
Working Modes Base Station, CPE, Bridge
Management Features SSID hiding, Antenna alignment, Spectrum scan, VLAN, SNMP, SSH
Configuration Web management (via local IP address) and Cloud management (via Lysora Cloud Portal)
Environmental & Certifications
Operating Temperature -30°C to +55°C (-22°F to +131°F)
Weather Resistance IP55 rating
Certifications FCC, IC, cTUVus
Compliance NDAA Compliant
